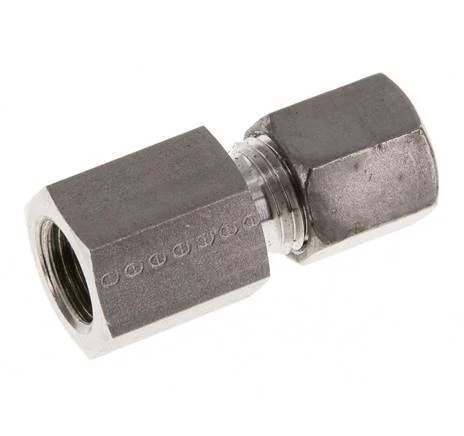

G 1/4” x 6S Stainless steel Straight Compression Fitting 630 Bar DIN 2353

This straight screwed-on screw connections is designed with female threads and a compression ring connection point. Connection 1 has female G 1/4 inch threads. Connection 2 is a 6 mm compression ring. It is a straight fitting. It is made out of stainless steel (1.4571). It is suitable for media within a temperature range of -60 °C to 400 °C (-76 °F to 752 °F). At 20 °C (68 °F), it can handle a maximum pressure of 630 bar (9138 psi). According to the DIN 2353, it has an S (heavy) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-FC series

The FL2S-FC series are straight fittings with one female connection point and then either a compression ring or cutting ring connection point. Made out of brass, steel, and stainless steel they are a 3-part design.

Specifications

Thread : 1/4 inch
Compression ring connection (mm) : 6
Load class (DIN 2353) : S (heavy)
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 630
Min temperature (°C) : -60
Max temperature (°C) : 400
Standard : DIN EN ISO 8434-1 (DIN 2353)
Quality of material : Stainless steel 321 (1.4541)
Model : 3-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
