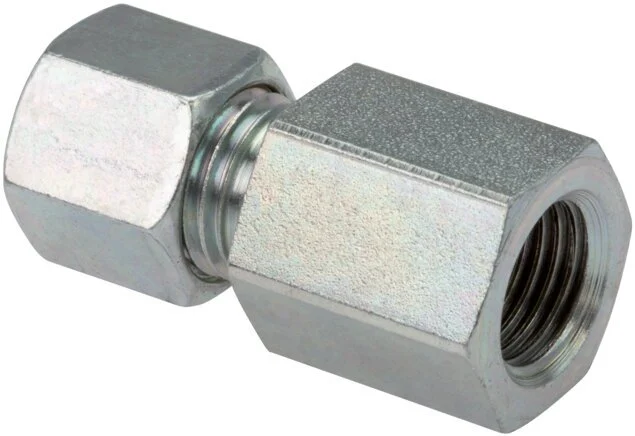

G 1/4” x 8L Zinc plated Steel Straight Cutting Ring 315 Bar DIN 2353 [2 Pieces]

This straight screwed-on screw connections is designed with female threads and a cutting ring connection point. Connection 1 has female G 1/4 inch threads. Connection 2 is a 8 mm cutting ring. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It is suitable for media within a temperature range of -40 °C to 120 °C (-40 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi). According to the DIN 2353, it has an L (light) load class. It is made in accordance with the DIN EN ISO 8434-1 (DIN 2353). They have a 3-part design.

Cons:

• Since it has a cutting ring connection, it can only be used once

FL2S-FC series

The FL2S-FC series are straight fittings with one female connection point and then either a compression ring or cutting ring connection point. Made out of brass, steel, and stainless steel they are a 3-part design.

Specifications

Thread : 1/4 inch
Load class (DIN 2353) : L (light)
Cutting ring connection (mm) : 8
Connection type : Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 315
Min temperature (°C) : -40
Max temperature (°C) : 120
Standard : DIN EN ISO 8434-1 (DIN 2353)
Model : 3-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
