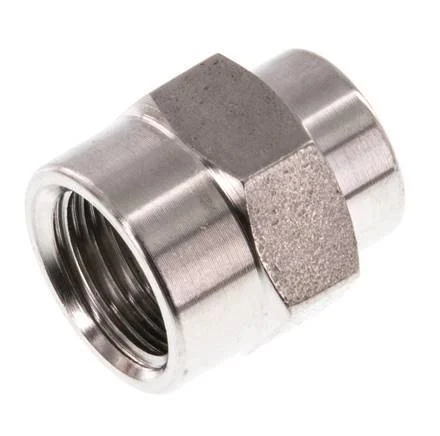

G 1/4” x G 1/8” Stainless steel Socket 40 Bar

This sleeve (reducing socket) is designed with reducing threads (hexagonal body). Connection 1 has female G 1/4 inch threads. Connection 2 has female G 1/8 inch threads. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi).

FL2S-F series

The FL2S-F series are straight sleeves designed either as reduces or weldable for female threads. They are made out of brass, cast iron, steel, sainless steel, or aluminum.

Specifications

Thread : 1/4 inch
Thread (smaller) : 1/8 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 40
Fitting features : Reducing
Quality of material : Stainless steel (1.4571)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
With drain : No
