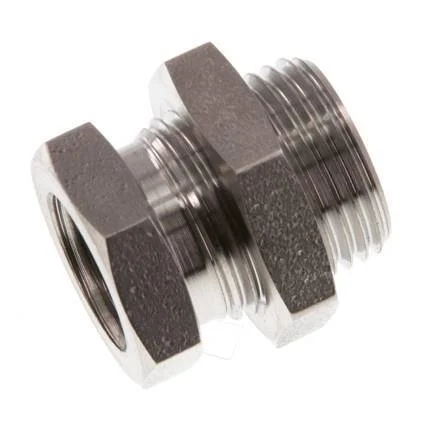

G 1/4” x G 3/8” F/M Stainless steel Bulkhead Fitting 40 Bar

This bulkhead screw connection is designed with a female and a male connection point for reducing connection diameters. Connection 1 has female G 1/4 inch threads. Connection 2 has male G 3/8 inch threads. It is a straight fitting. It is made out of stainless steel (1.4571). It has a total length of 22 mm. At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi). It has a 22 mm nut to be tightened with a wrench.

FL2S-FM-B series

The FL2S-FM-B series are straight bulkhead connections to connect a female and male connection point. From G or metric threads to G or metric threads. They are made out of brass or stainless steel they also come with a nut.

Specifications

Thread : 3/8 inch
Thread (smaller) : 1/4 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 40
Fitting features : Bulkhead,Reducing
Quality of material : Stainless steel 321 (1.4541)
Model : 2-part
Length (mm) : 22
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
Wrench width (mm) : 22
