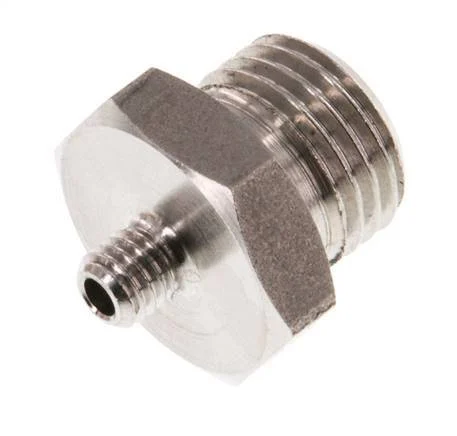

G 1/4” x M5 Stainless steel Double Nipple 40 Bar

This double nipple is designed with male to male threads. Connection 1 has male G 1/4 inch threads. Connection 2 has male M5 threads. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi). It has a 17 mm nut to be tightened with a wrench.

FL2S-M series

The FL2S-M series are straight double nipples with two male connection points. Thread standards of NPT, R, G, and metric are available in a wide range. They have a 1-part design made out of brass, cast iron, steel, or stainless steel.

Specifications

Thread : M5
Thread (smaller) : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G,Outer thread metric
Material : Stainless steel
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 40
Fitting features : Reducing
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
With drain : No
Wrench width (mm) : 17
