G 1/8” M/F Nickel plated Brass Swivel Joint 15 Bar [2 Pieces]

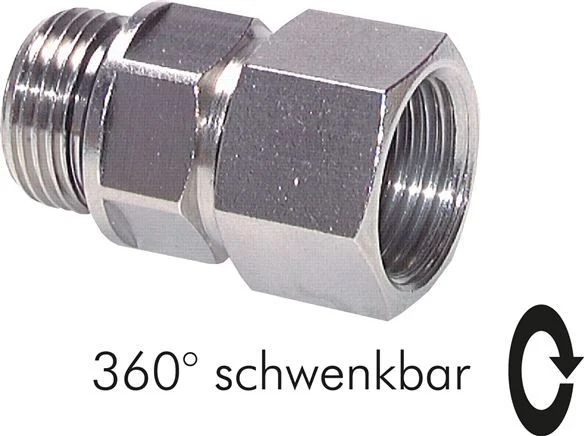

This straight rotary joint is designed with male to female threads. Connection 1 has male G 1/8 inch threads. Connection 2 has female G 1/8 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a NBR seal. It is suitable for media within a temperature range of -20 °C to 80 °C (-4 °F to 176 °F). At 20 °C (68 °F), it can handle a maximum pressure of 15 bar (218 psi). It is suitable for vacuum applications.

Pros:

• It is suitable for vacuum applications.

FL2S-MF-RV series

The FL2S-MF-RV series are straight rotary fittings with male G threads to female G threads. They are capable of rotating, but only at slow speeds, and are made of brass.

Specifications

Thread : 1/8 inch
Thread (smaller) : 1/8 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -20
Max temperature (°C) : 80
Fitting features : For vacuum,With gasket
Model : 2-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
