G 1/8” Nickel plated Brass Y-Piece 16 Bar [2 Pieces]

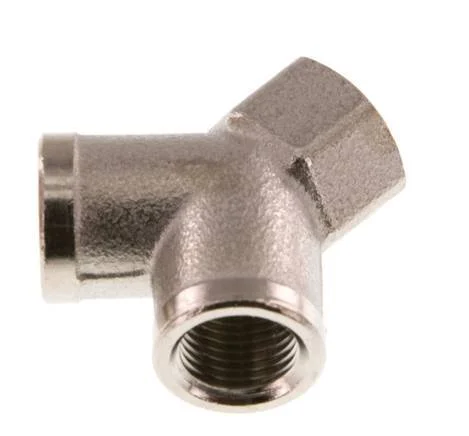

This Y-piece is designed with three female threaded ports in a Y shape. Connection 1 has female G 1/8 inch threads. Connection 2 has female G 1/8 inch threads. Connection 3 has female G 1/8 inch threads. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL3Y-F series

The FL3Y-F series has 3 connection ports in the shape of a Y. They are all female threaded with G or Rp threads. Made out of brass, cast iron, and stainless steel. Max pressure of either 16 or 25 bar.

Specifications

Thread : 1/8 inch
Thread (smallest) : 1/8 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : Y-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Surface protection connection 3 : Nickel-plated
With drain : No
