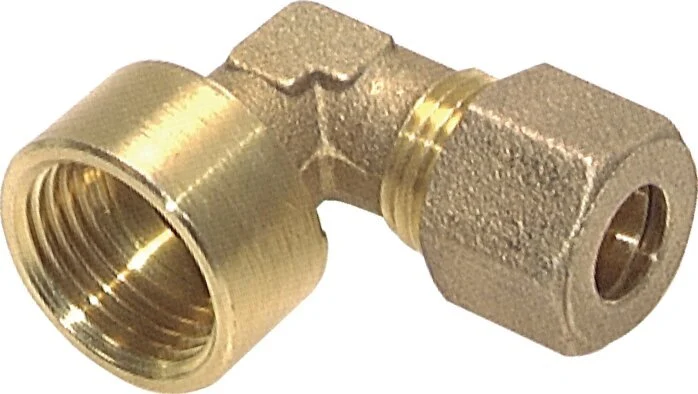

G 1/8” x 4mm Brass 90 deg Elbow Compression Fitting 150 Bar DIN EN 1254-2 [2 Pieces]

This elbow screw connection is designed with a female connection point to a compression ring fitting. Connection 1 has female G 1/8 inch threads. Connection 2 is a 4 mm compression ring. It is an elbow fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 150 bar (2176 psi). The input and the output are at a 90° angle. It is made in accordance with the DIN EN 1254-2. They have a 3-part design.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2E-FO series

The FL2E-FO series are elbow fittings with one female connection point and one compression ring connection point at a 90 degree angle. They are made out of brass. Female thread range of G 1/8 up to 1/2 inch and a compression ring fitting size range of 4 to 18 mm.

Specifications

Thread : 1/8 inch
Compression ring connection (mm) : 4
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 150
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : 3-part
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
