G 1/8” x 8mm Brass Hose barb 16 Bar [2 Pieces]

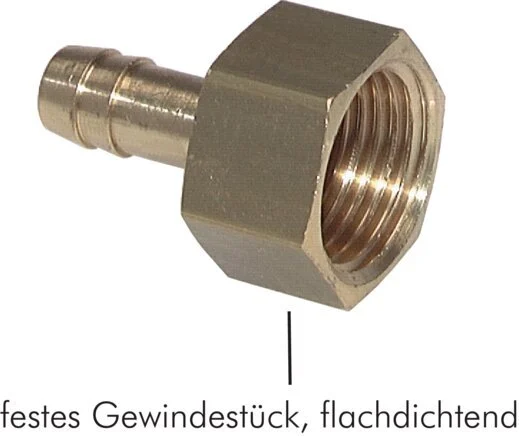

This hose screw connection is designed with a hose pillar connection and female G threads. Connection 1 has female G 1/8 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 8 mm. It is a straight fitting. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 12 mm nut to be tightened with a wrench.

FL2-H series

The FL2-H series are straight fittings with a hose pillar on connection 1 and female threads (G or metric) or a union nut on connection 2. They are made out of brass and stainless steel.

Specifications

Thread : 1/8 inch
Hose pillar connection : 8 mm
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Wrench width (mm) : 12
