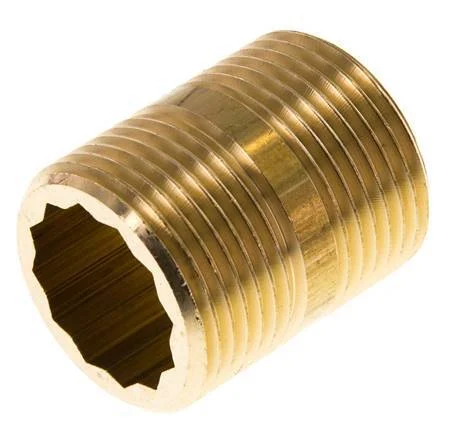

G 1” Brass Double Pipe Nipple 16 Bar DIN 2982 – 40mm

This double pipe nipple is designed with male to male threads. Connection 1 has male G 1 inch threads. Connection 2 has male G 1 inch threads. It is a straight fitting. It is made out of brass. It has a total length of 40 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It is made in accordance with the EN 10241 (DIN 2982).

FL2S-M-P series

The FL2S-M-P series are straight fittings with male R or G threads and the second connection point is either male R or G threads or a welding connection. Made out of brass, steel, or stainless steel.

Specifications

Thread : 1 inch
Thread (smaller) : 1 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Standard : EN 10241 (DIN 2982)
Model : 1-part
Length (mm) : 40
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
