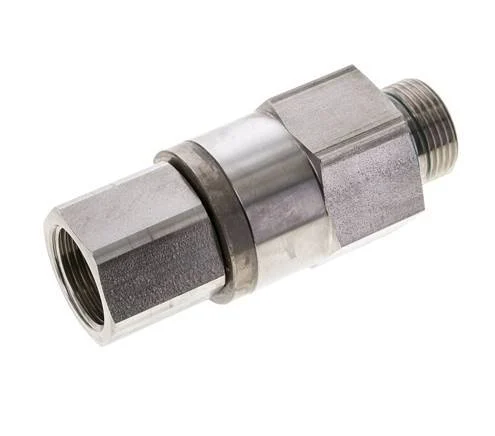

G 1” F/M Stainless steel Swivel Joint 250 Bar – Hydraulic – High-pressure

This high-pressure rotary joint is designed with female G threads and male G threads. Connection 1 has female G 1 inch threads. Connection 2 has male G 1 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of stainless steel. It has a FKM / PTFE seal. It is suitable for media within a temperature range of -20 °C to 120 °C (-4 °F to 248 °F). At 20 °C (68 °F), it can handle a maximum pressure of 250 bar (3626 psi). It can withstand 2 rotations per minute.

FL2S-FM-R series

The FL2S-FM-R series are straight fittings with female G threads and male G threads. They are meantu for high pressure applications (up to 500 bar) and made from steel or stainless steel.

Specifications

Thread : 1 inch
Thread (smaller) : 1 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -20
Max temperature (°C) : 120
Fitting features : Hydraulic,With gasket
Model : 1-part
Max. number of revolutions (Rpm) : 2
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Shape : Straight
