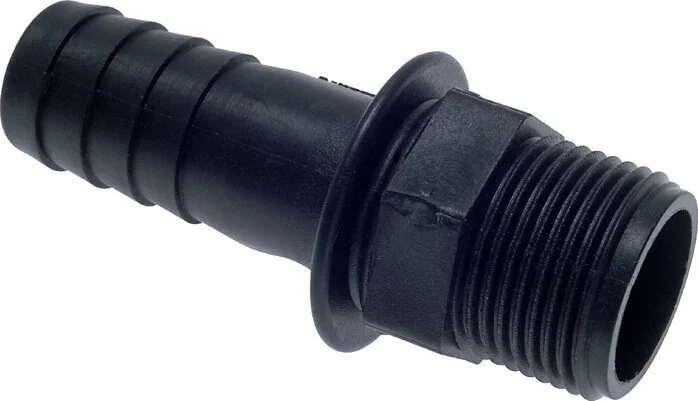

G 1” Male x 25mm Polypropylene (PP) Hose barb 10 Bar [2 Pieces]

This hose screw connection is designed with a nozzle and a male thread. Connection 1 has male G 1 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 25 mm. It is a straight fitting. It is made out of polypropylene (pp). At 20 °C (68 °F), it can handle a maximum pressure of 10 bar (145 psi). It has a 36 mm nut to be tightened with a wrench.

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 1 inch
Hose pillar connection : 25 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Polypropylene (PP)
Max pressure at 20 °C (bar) : 10
Model : 1-part
Material connection 1 : Polypropylene (PP)
Material connection 2 : Polypropylene (PP)
Shape : Straight
Wrench width (mm) : 36
