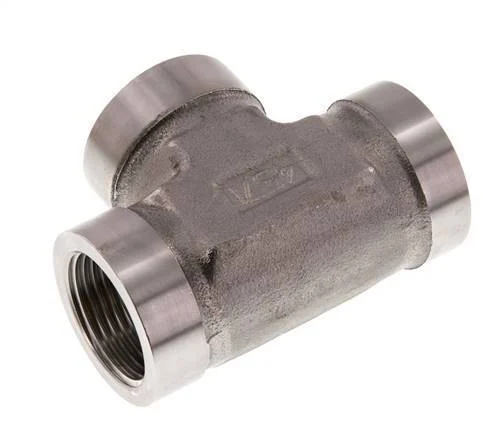

G 1” Stainless steel Tee 160 Bar – Hydraulic

This T-piece is designed with 3 female threaded ports in a T shape. Connection 1 has female G 1 inch threads. Connection 2 has female G 1 inch threads. Connection 3 has female G 1 inch threads. It is made out of stainless steel (1.4401). At 20 °C (68 °F), it can handle a maximum pressure of 160 bar (2321 psi).

FL3T-F series

The FL3T-F series has 3 connection ports of all female NPT, G, Rp, or metric threads. They are in a T shape. Made out of brass, cast iron, steel, or stainless steel they have a pressure range of 10 to 350 bar.

Specifications

Thread : 1 inch
Thread (smallest) : 1 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Fitting features : Hydraulic
Max pressure at 20 °C (bar) : 160
Model : T-piece
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material connection 3 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4401)
Material quality connection 2 : Stainless steel 316 (1.4401)
Material quality connection 3 : Stainless steel 316 (1.4401)
