G 1” Throttle Valve Claw Coupling DIN 3486 Cast Iron

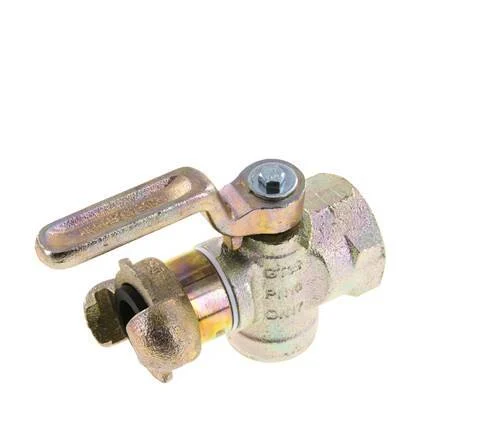

This is a throttle valve with a 42 mm claw coupling (DIN 3486) connection and a G 1 inch female thread connection. When closed, the coupling side is vented allowing for safe decoupling. It is made of malleable cast iron with an NBR seal. The maximum operating pressure is 10 bar (145 psi) and it is suitable for temperatures between -15 to 80 °C (5 to 176 °F).

Pros:

• Adheres to DIN 3486
• Coupling is vented when closed, allowing a safe decoupling

Specifications

Material : Malleable cast iron
Seal material : NBR (nitrile rubber)
Lug distance (mm) : 42 mm
Operation : Handle
Max temperature (°C) : 80
Min temperature (°C) : -15
Max pressure at 20 °C (bar) : 10
Article compression class : PN 10
Seal, connection 2 : Rubber
