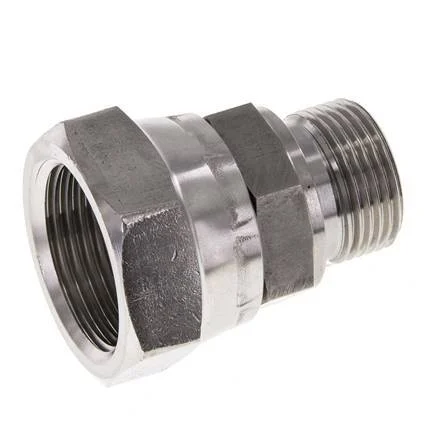

G 1” x G 3/4” F/M Stainless steel Reducing Adapter 150 Bar – Hydraulic

This adjustable screwed connection is designed with male G threads and female G threads (60 degree conical). Connection 1 has female G 1 inch threads. Connection 2 has male G 3/4 inch threads. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 150 bar (2176 psi).

FL2S-FM-I series

The FL2S-FM-I series are straight fittings with G male threads and G female threads with a 60 degree conical seal from 1/8 inch to 2 inches. They are a 2-part design and made out of steel and stainless steel.

Specifications

Thread : 1 inch
Thread (smaller) : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 150
Fitting features : Hydraulic,Adjustable,Reducing
Threaded end seal 2 : Inside cone, 60°
Quality of material : Stainless steel 321 (1.4541)
Model : 2-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
