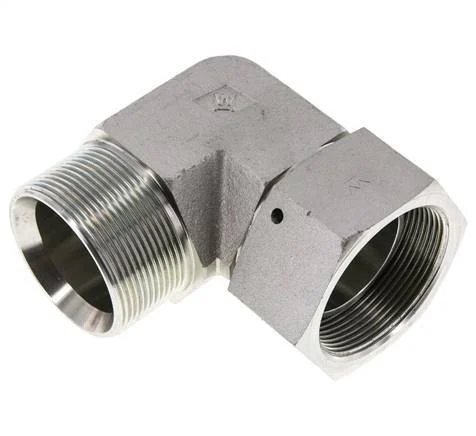

G 2” M/F Zinc plated Steel 90 deg Elbow Fitting 75 Bar – Hydraulic

This screw-in elbow is designed with one male and one female threaded connection. Connection 1 has male G 2 inch threads. Connection 2 has female G 2 inch threads. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 75 bar (1088 psi). The input and the output are at a 90° angle.

FL2E-FM series

The FL2E-FM series are elbow fittings with one port having male threads and the second having female threads. Bend angle of 45 or 90 degrees with some having a 60 degree conical inside the male threads. Brass, cast iron, steel, or stainless steel options.

Specifications

Thread : 2 inch
Thread (smaller) : 2 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Steel
Max pressure at 20 °C (bar) : 75
Fitting features : Hydraulic
Threaded end seal 1 : Inside cone, 60°
Model : 2-part
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
