G 3/4” F/M Chromium plated Brass Extension DIN 3523 – 50 mm

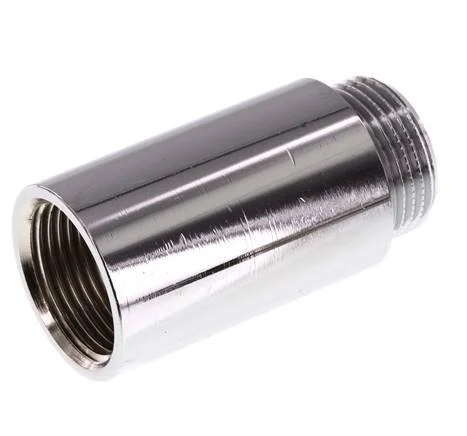

This extension is designed with male and female threads. Connection 1 has female G 3/4 inch threads. Connection 2 has male G 3/4 inch threads. It is a straight fitting. It is made out of brass and is chromium-plated for surface protection. It has a total length of 50 mm. It is made in accordance with the DIN 3523.

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Brass
Standard : DIN 3523
Model : 1-part
Length (mm) : 50
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Chromium-plated
Surface protection connection 2 : Chromium-plated
With drain : No
