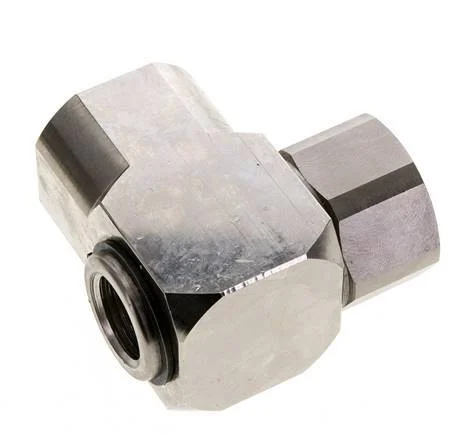

G 3/4” Female Brass Rotary Joint 12 Bar with FKM Seal

This 1-way rotary joint is designed with elbow rotatable applications requiring 2 inputs. Connection 1 has female G 3/4 inch threads. Connection 2 has female G 3/4 inch threads. Connection 3 has female G 1/2 inch threads. It comes with a gasket to ensure a proper seal can be made. It is made out of brass and is nickel-plated for surface protection. It has a FPM/FKM seal. It is suitable for media within a temperature range of -10 °C to 85 °C (14 °F to 185 °F). At 20 °C (68 °F), it can handle a maximum pressure of 12 bar (174 psi). It can withstand 550 rotations per minute. It has a flow rate capacity of 6200 l/min.

FL3-R series

The FL3-R series are 1-way rotary joints made out of brass. They have female input and output threads ranging from G 1/8 inch up to G 1 inch. The 1/8 inch and 1/4 inch input versions have 1 input and the larger inputs have 2 inputs. They can rotate up to 550 rpm.

Specifications

Thread : 3/4 inch
Thread (smaller) : 1/2 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Seal material : FKM (FPM)
Max flow rate (l/min) : 6200
Max pressure at 20 °C (bar) : 12
Min temperature (°C) : -10
Max temperature (°C) : 85
Fitting features : With gasket
Max. number of revolutions (Rpm) : 550
Material connection 1 : Brass
Material connection 2 : Brass
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
