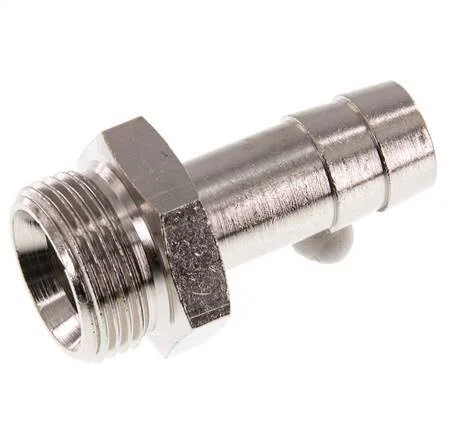

G 3/4” Male x 16mm Nickel plated Brass Hose barb 16 Bar

This hose screw connection is designed with a nozzle and a male thread. Connection 1 has male G 3/4 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 16 mm. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 30 mm nut to be tightened with a wrench.

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 3/4 inch
Hose pillar connection : 16 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Threaded end seal 2 : Inside cone
Model : 1-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Wrench width (mm) : 30
