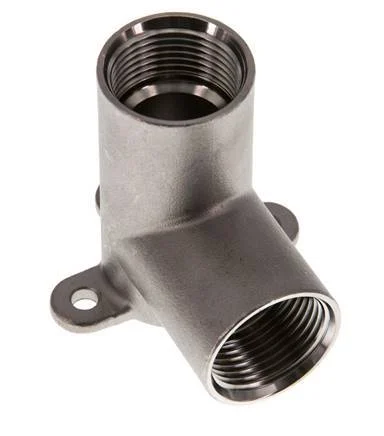

G 3/4” Stainless steel Wall mounted 2-way Air Junction 16 Bar

This pipeline socket is designed with routing the air at a 90 degree bend with mounting holes. Connection 1 has female G 3/4 inch threads. Connection 2 has female G 3/4 inch threads. It is a elbow (fitting) fitting. It is made out of stainless steel (1.4408). At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). The input and the output are at a 90° angle.

FL2-F-P series

The FL2-F-P series are elbow pipline sockets with mounting holes. They have a bend angle of 90 degrees and 1 inlet and 1 outlet. Made out of brass or stainless steel with female G 3/8, 1/2, or 3/4 inch connection ports.

Specifications

Thread : 3/4 inch
Thread (smaller) : 3/4 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 16
Quality of material : Stainless steel 316 (1.4408)
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 316 (1.4408)
Material quality connection 2 : Stainless steel 316 (1.4408)
Shape : Elbow
