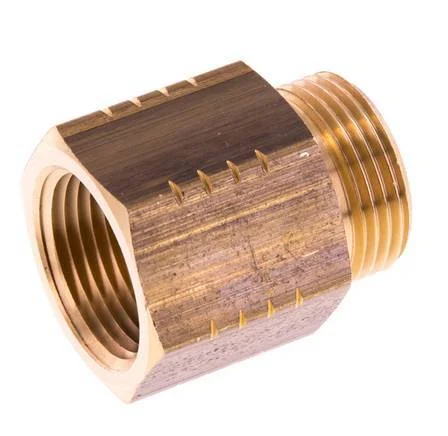

G 3/4” x 3/4” NPT M/F Brass Reducing Ring 16 Bar – Hydraulic

This reducing nipple is designed with male and female threads. Connection 1 has male G 3/4 inch threads. Connection 2 has female NPT 3/4 inch threads. It is a straight fitting. It is made out of brass. It has a total length of 40 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 32 mm nut to be tightened with a wrench.

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : 3/4 inch
Thread (smaller) : 3/4 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread conical (NPT)
Material : Brass
Max pressure at 20 °C (bar) : 16
Fitting features : Hydraulic
Model : 1-part
Length (mm) : 40
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Wrench width (mm) : 32
