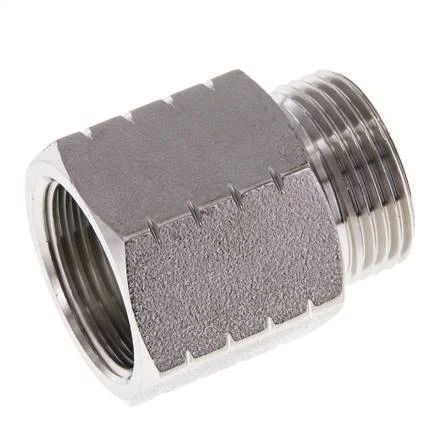

G 3/4” x 3/4” NPT M/F Stainless steel Reducing Ring 40 Bar – Hydraulic

This reducing nipple is designed with male and female threads. Connection 1 has male G 3/4 inch threads. Connection 2 has female NPT 3/4 inch threads. It is a straight fitting. It is made out of stainless steel (1.4571). At 20 °C (68 °F), it can handle a maximum pressure of 40 bar (580 psi).

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : 3/4 inch
Thread (smaller) : 3/4 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread conical (NPT)
Material : Stainless steel
Max pressure at 20 °C (bar) : 40
Fitting features : Hydraulic
Quality of material : Stainless steel 321 (1.4541)
Model : 1-part
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel 321 (1.4541)
Material quality connection 2 : Stainless steel 321 (1.4541)
Shape : Straight
