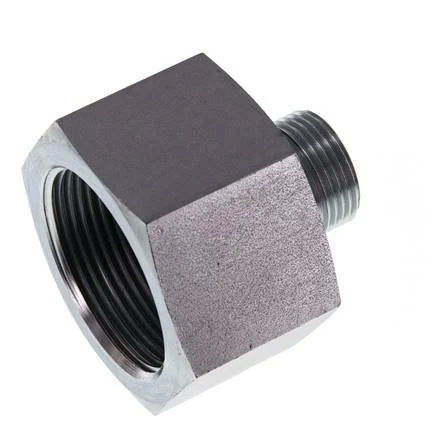

G 3/4” x G 1 1/2” M/F Zinc plated Steel Reducing Adapter 315 Bar – Hydraulic

This threaded reduction is designed with cylindrical male and female threads. Connection 1 has male G 3/4 inch threads. Connection 2 has female G 1 1/2 inch threads. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a elastomer seal. At 20 °C (68 °F), it can handle a maximum pressure of 315 bar (4569 psi).

FL2S-MF series

The FL2S-MF series are straight reducers with NPT or G male and female threads. They are a 1 part design, made of steel and stainless steel, and capable of pressures up to 630 bar.

Specifications

Thread : 1 1/2 inch
Thread (smaller) : 3/4 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Steel
Seal material : Elastomer
Max pressure at 20 °C (bar) : 315
Fitting features : Hydraulic,Reducing,With gasket
Model : 1-part
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
