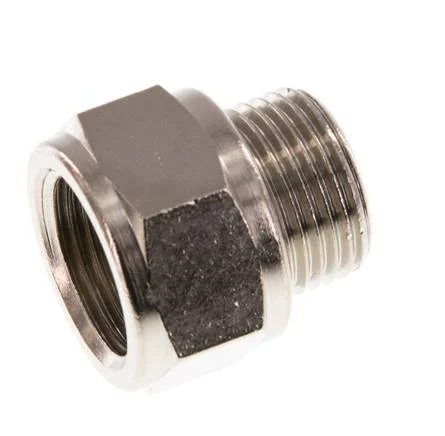

G 3/8” F/M Nickel plated Brass Extension 16 Bar – 14 mm [2 Pieces]

This extension is designed with male and female threads. Connection 1 has female G 3/8 inch threads. Connection 2 has male G 3/8 inch threads. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a total length of 14 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 22 mm nut to be tightened with a wrench.

FL2S-FM series

The FL2S-FM series are straight fittings with one female connection point and one male connection point. Thread standards of NPT, R, Rp, G, and metric are available. They are a 1-part design made out of brass, cast iron, steel, nitrified steel, and stainless steel.

Specifications

Thread : 3/8 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : 1-part
Length (mm) : 14
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Wrench width (mm) : 22
