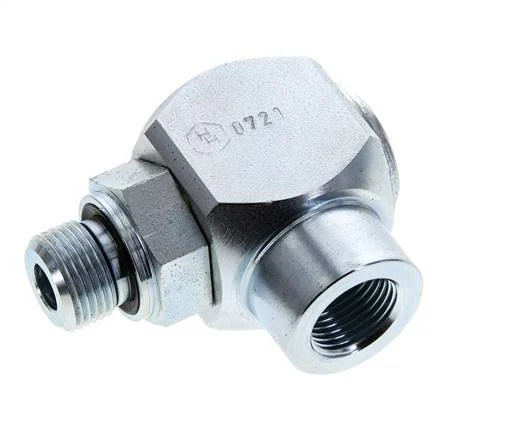

G 3/8” M/F Zinc plated Steel 90 deg Elbow Swivel Joint High-pressure 400 Bar – Hydraulic

This high-pressure elbow swivel joint is designed with a female and a male connection point. Connection 1 has male G 3/8 inch threads. It comes with a gasket to ensure a proper seal can be made. It is an elbow fitting. It is made out of steel and is galvanic/electrolytic zinc plated for surface protection. It has a NBR seal. It is suitable for media within a temperature range of -30 °C to 100 °C (-22 °F to 212 °F). At 20 °C (68 °F), it can handle a maximum pressure of 400 bar (5802 psi). The input and the output are at a 90° angle. It can withstand 5 rotations per minute.

FL2E-MF-R series

The FL2E-MF-R series are elbow fittings with male threads and female threads that are rotable between 0.5 and 10 rotatations per minue. They are bent at 90 degrees and made out of steel and stainless steel.

Specifications

Thread : 3/8 inch
Thread (smaller) : 3/8 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 400
Min temperature (°C) : -30
Max temperature (°C) : 100
Fitting features : Hydraulic,With gasket
Model : 1-part
Max. number of revolutions (Rpm) : 5
Bend angle (°) : 90
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Elbow
Surface protection connection 1 : Galvanic/electrolytic zinc plated
Surface protection connection 2 : Galvanic/electrolytic zinc plated
