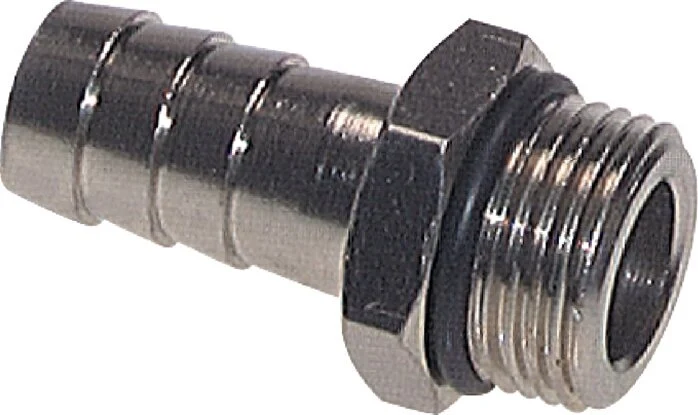

G 3/8” Male x 12mm Nickel plated Brass Hose barb with NBR Seal 30 Bar [2 Pieces]

This hose screw connection is designed with a nozzle and a male thread with a sealing. Connection 1 has male G 3/8 inch threads. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 12 mm. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of brass and is nickel-plated for surface protection. It has a NBR seal. It has a total length of 34 mm. At 20 °C (68 °F), it can handle a maximum pressure of 30 bar (435 psi). It has a 20 mm nut to be tightened with a wrench.

FL2S-MH series

The FL2S-MH series are hose barbs with male threads. They are made out of brass, stainless steel, steel or plastic. Available with G-, R-, and NPT thread. Suitable for a max pressure up to 40 bar.

Specifications

Thread : 3/8 inch
Hose pillar connection : 12 mm
Connection type : Outer thread cylindrical BSPP-G
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 30
Fitting features : With gasket
Type of sealing : O-ring
Model : 1-part
Length (mm) : 34
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Surface protection connection 1 : Nickel-plated
Surface protection connection 2 : Nickel-plated
Wrench width (mm) : 20
