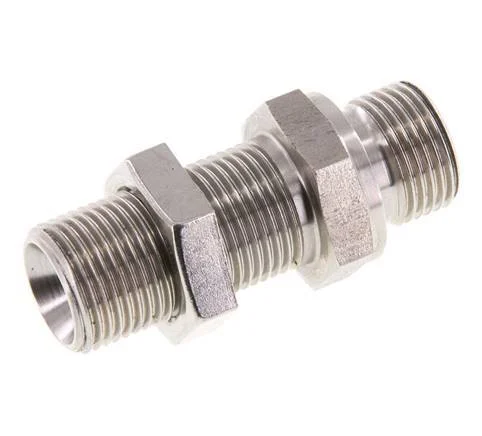

G 3/8” Stainless steel Bulkhead Double nipple 325 Bar – Hydraulic

This bulkhead nipple is designed with two male G threads (60 degree conical) and a bulkhead design. Connection 1 has male G 3/8 inch threads. Connection 2 has male G 3/8 inch threads. It is a straight fitting. It is made out of stainless steel (1.4436). It has a total length of 52 mm. At 20 °C (68 °F), it can handle a maximum pressure of 325 bar (4714 psi).

FL2S-M-BI series

The FL2S-M-BI series are straight fittings with two male G threads (60 degree conical) and a bulkhead design. 2 part design made out of steel or stainless steel.

Specifications

Thread : 3/8 inch
Thread (smaller) : 3/8 inch
Connection type : Outer thread cylindrical BSPP-G
Material : Stainless steel
Max pressure at 20 °C (bar) : 325
Fitting features : Hydraulic,Bulkhead
Threaded end seal 1 : Inside cone, 60°
Threaded end seal 2 : Inside cone, 60°
Quality of material : Stainless steel (1.4436)
Model : 2-part
Length (mm) : 52
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4436)
Material quality connection 2 : Stainless steel (1.4436)
Shape : Straight
