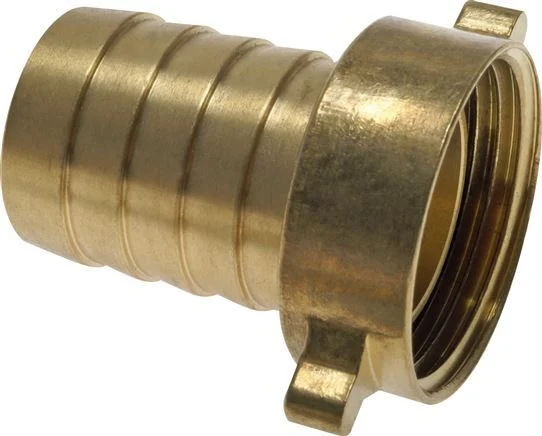

G 3/8” x 10mm Brass Hose barb with NBR Seal and Wing Nut 16 Bar [2 Pieces]

This hose screw connection is designed with a hose pillar connection and a union nut connection point. Connection 1 is a 3/8 inch union nut. Connection 2 is a hose pillar, designed for a hose with an inner diameter of 10 mm. It comes with a gasket to ensure a proper seal can be made. It is a straight fitting. It is made out of brass. It has a NBR seal. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL2-H series

The FL2-H series are straight fittings with a hose pillar on connection 1 and female threads (G or metric) or a union nut on connection 2. They are made out of brass and stainless steel.

Specifications

Hose pillar connection : 10 mm
Union nut connection : G 3/8 inch
Material : Brass
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 16
Fitting features : With wing union nut,With gasket
Type of sealing : Flat sealing
Model : 2-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
