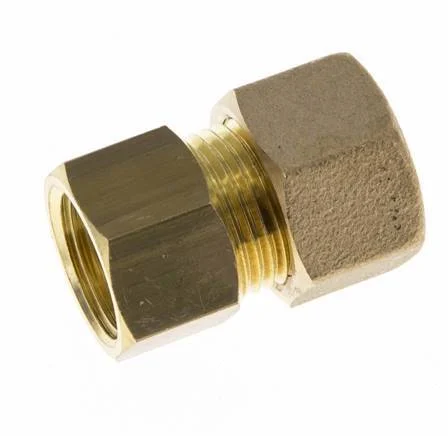

G 3/8” x 12mm Brass Straight Compression Fitting 75 Bar DIN EN 1254-2

This straight screwed-on screw connections is designed with female threads and a compression ring connection point. Connection 1 has female G 3/8 inch threads. Connection 2 is a 12 mm compression ring. It is a straight fitting. It is made out of brass. It is suitable for media within a temperature range of -60 °C to 300 °C (-76 °F to 572 °F). At 20 °C (68 °F), it can handle a maximum pressure of 75 bar (1088 psi). It is made in accordance with the DIN EN 1254-2. They have a 3-part design.

Cons:

• Since it has a compression ring connection, it can only be used once

FL2S-FC series

The FL2S-FC series are straight fittings with one female connection point and then either a compression ring or cutting ring connection point. Made out of brass, steel, and stainless steel they are a 3-part design.

Specifications

Thread : 3/8 inch
Compression ring connection (mm) : 12
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 75
Min temperature (°C) : -60
Max temperature (°C) : 300
Standard : DIN EN 1254-2
Model : 3-part
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
With drain : No
