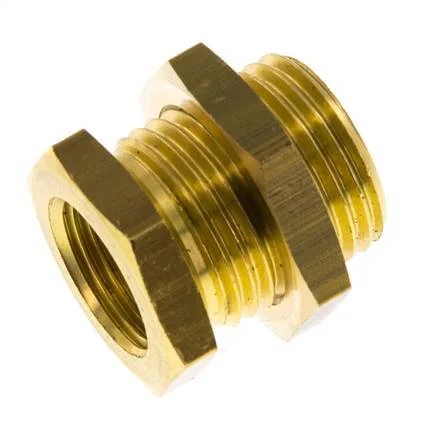

G 3/8” x G 1/2” F/M Brass Bulkhead Fitting 16 Bar [2 Pieces]

This bulkhead screw connection is designed with a female and a male connection point for reducing connection diameters. Connection 1 has female G 3/8 inch threads. Connection 2 has male G 1/2 inch threads. It is a straight fitting. It is made out of brass. It has a total length of 26 mm. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). It has a 24 mm nut to be tightened with a wrench.

FL2S-FM-B series

The FL2S-FM-B series are straight bulkhead connections to connect a female and male connection point. From G or metric threads to G or metric threads. They are made out of brass or stainless steel they also come with a nut.

Specifications

Thread : 1/2 inch
Thread (smaller) : 3/8 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Fitting features : Bulkhead,Reducing
Model : 2-part
Length (mm) : 26
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Straight
Wrench width (mm) : 24
