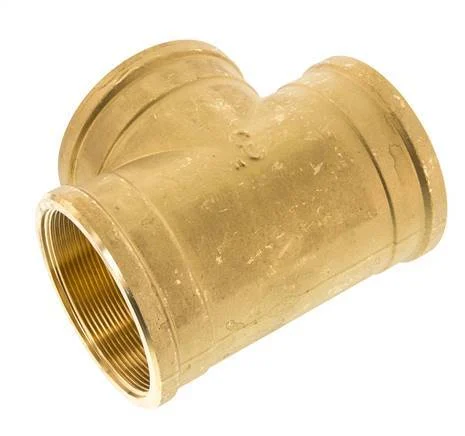

G 3” Brass Tee 16 Bar

This T-piece is designed with 3 female threaded ports in a T shape. Connection 1 has female G 3 inch threads. Connection 2 has female G 3 inch threads. Connection 3 has female G 3 inch threads. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi).

FL3T-F series

The FL3T-F series has 3 connection ports of all female NPT, G, Rp, or metric threads. They are in a T shape. Made out of brass, cast iron, steel, or stainless steel they have a pressure range of 10 to 350 bar.

Specifications

Thread : 3 inch
Thread (smallest) : 3 inch
Connection type : Inner thread cylindrical BSPP-G
Material : Brass
Max pressure at 20 °C (bar) : 16
Model : T-piece
Angle adjustable : No
Material connection 1 : Brass
Material connection 2 : Brass
Material connection 3 : Brass
With drain : No
