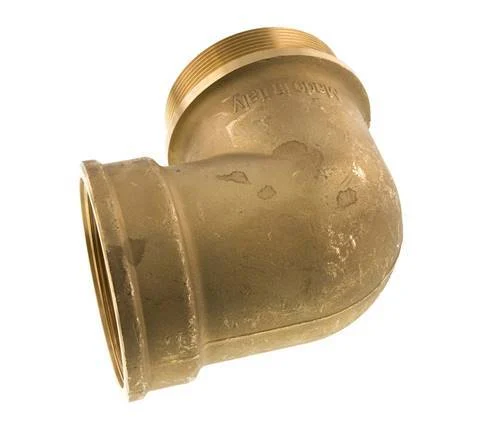

G 3” x G 3” F/M Brass 90 deg Elbow Fitting 16 Bar

This screw-in elbow is designed with one male and one female threaded connection. Connection 1 has female G 3 inch threads. Connection 2 has male G 3 inch threads. It is an elbow fitting. It is made out of brass. At 20 °C (68 °F), it can handle a maximum pressure of 16 bar (232 psi). The input and the output are at a 90° angle.

FL2E-FM series

The FL2E-FM series are elbow fittings with one port having male threads and the second having female threads. Bend angle of 45 or 90 degrees with some having a 60 degree conical inside the male threads. Brass, cast iron, steel, or stainless steel options.

Specifications

Thread : 3 inch
Thread (smaller) : 3 inch
Connection type : Inner thread cylindrical BSPP-G,Outer thread cylindrical BSPP-G
Material : Brass
Min pressure (bar) : 0
Min pressure difference (bar) : 0
Max pressure at 20 °C (bar) : 16
Model : 1-part
Bend angle (°) : 90
Material connection 1 : Brass
Material connection 2 : Brass
Shape : Elbow
With drain : No
