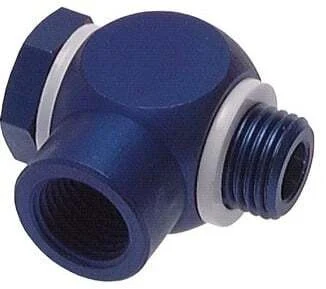

G1/4” Aluminum Banjo Fitting with Male and Female Threads with Banjo Bolt with O-ring Rotatable

This aluminum banjo fitting is designed with one female threaded connection and pne male threaded connection. Connection 1 has G 1/4 inch female threads. Connection 2 has G 1/4 inch male threads. It has an O-ring for sealing. The operating pressure range is -0.99 to 15 bar (-14 to 218 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -15 to 70 °C (5 to 158 °F).

Pros:

• It can be used for vacuum applications
• Thread connection is rotatable
• The male thread connection has an O-ring seal

Specifications

Thread : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Aluminum
Min pressure (bar) : -0.99
Max pressure at 20 °C (bar) : 15
Min temperature (°C) : -15
Max temperature (°C) : 70
Fitting features : Vacuum,Rotatable
Type of sealing : O-ring
Bend angle (°) : 90
Material connection 1 : Aluminum
Material connection 2 : Aluminum
Shape : Banjo
With drain : No
