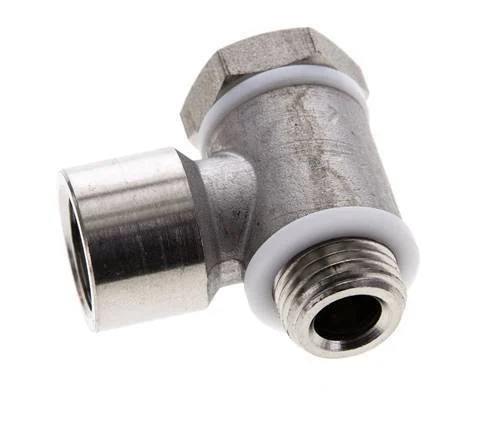

G1/4” Stainless Steel 1.4404 Banjo Fitting with Male and Female Threads with Banjo Bolt with O-ring Rotatable

This stainless steel 1.4404 banjo fitting is designed with one female threaded connection and pne male threaded connection. Connection 1 has G 1/4 inch female threads. Connection 2 has G 1/4 inch male threads. It has an O-ring for sealing. The operating pressure range is -0.95 to 20 bar (-14 to 290 psi), making it suitable for vacuums. The fitting is suitable for temperatures from -20 to 180 °C (-4 to 356 °F).

Pros:

• It can be used for vacuum applications
• Thread connection is rotatable
• The male thread connection has an O-ring seal
• Stainless steel material has better chemical resistance than other common fitting materials like brass, aluminum, and plastic

Specifications

Thread : 1/4 inch
Connection type : Outer thread cylindrical BSPP-G,Inner thread cylindrical BSPP-G
Material : Stainless steel
Min pressure (bar) : -0.95
Max pressure at 20 °C (bar) : 20
Min temperature (°C) : -20
Max temperature (°C) : 180
Fitting features : Vacuum,Rotatable
Type of sealing : O-ring
Quality of material : Stainless steel (1.4404)
Bend angle (°) : 90
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4404)
Material quality connection 2 : Stainless steel (1.4404)
Shape : Banjo
With drain : No
