Hardened steel DN 7.8 Air Coupling Socket 6 mm Hose Pillar

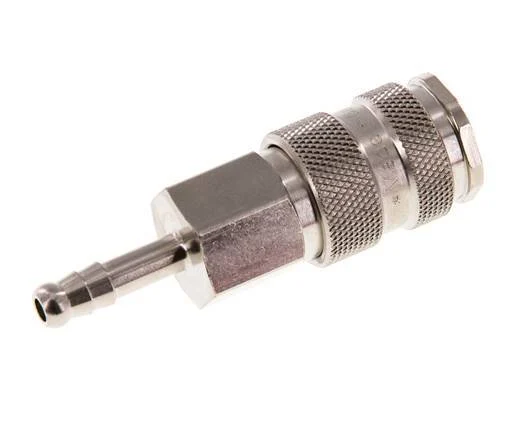

Hardened steel DN 7.8 air coupling socket with a 6 mm hose pillar connection. A pneumatic coupling is used to quickly connect air tools to a compressed air line. The coupling requires two parts: the socket (female) and the plug or nipple (male part). When disconnected, the coupling automatically shuts off to maintain the line pressure.

Easily mount a hose over the 6 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose. This coupling is suitable for vacuum applications. The socket has a durable ball lock design. The operating pressure range is -0.95 to 35 bar. The socket is suitable for temperatures between -20 to 100°C. The rated flow rate is 1850 l/min. The seal material is NBR (nitrile rubber). The hardened steel housing has a nickel-plated surface protection.

This product is compatible with: Rectus (25, 26, 1600, 1625), TEMA (1600), CEJN (320), JWL (520, 530, 560), Legris (25, 26), Parker (PE, PEF), Prevost (E … 07), Festo (KD4 / KS4), IMI-Norgren (238), Aventics (CP1-NW 7 / 7,8). They are often referred to as compressed air couplings, compressor couplings, pneumatic fittings, air hose couplings, etc.

Pros:

• Easily mount a hose over the 6 mm hose pillar. Optionally, order a hose clamp for proper fixation of the hose.
• Compatible with a wide range of air couplings with the same standard profile design.
• It can be used for vacuum applications.
• The socket has a durable ball lock design for added security.

CLS7-H-BL series

Our air coupler offering ranges from DN 2.7 – 19 mm for standard plugs and sockets, as well as a variety of safety air couplings, compressor couplings, manifolds, compressor claw couplings, and the CEJN Multilink system. Various connection types are available for each (female threads, male threads, hose pillar, union nut, etc.) with a wide range of min and max pressures. Our non-interchangeable color-coded options give you a clear visual indicator on what lines to connect. The safety air couplings have push-buttons, swivels, and slides as a safety release function. Our 42 mm compressor claw couplings follow DIN 3498 (similar) as well as DIN 3238 (Mody) for safety applications.

Specifications

Hose pillar connection (mm) : 6
Nominal diameter (mm) : 7.8
Material : Hardened steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 35
Min temperature (°C) : -20
Max temperature (°C) : 100
Coupling features : Vacuum,Ball lock
Min pressure (bar) : -0.95
Compatible models : Rectus (25, 26, 1600, 1625),TEMA (1600),CEJN (320),JWL (520, 530, 560),Legris (25, 26),Parker (PE, PEF),Prevost (E … 07),Festo (KD4 / KS4),IMI-Norgren (238),Aventics (CP1-NW 7 / 7,8)
Shape : Coupling (female)
Max flow rate (l/min) : 1850
Surface protection : Nickel-plated
With dust cap : No
