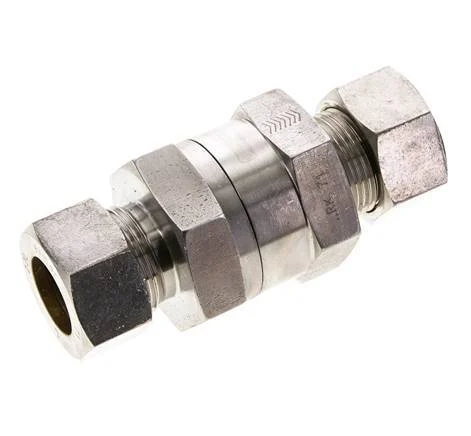

Hydraulic Check Valve Compression Ring 22L (M30x2) Stainless Steel 1-160bar (15-2320)psi ISO 8434-1

This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has 22 mm compression ring with a M30x2 union nut on both sides. Rated for L (light) load classes. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 160 bar (15 to 2320 psi). It is made in accordance with ISO 8434-1.

Pros:

• Adheres to ISO 8434-1
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Union nut thread : M30 x 2
Load class (DIN 2353) : L (light)
Connection type : Compression ring
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -20
Max temperature (°C) : 200
