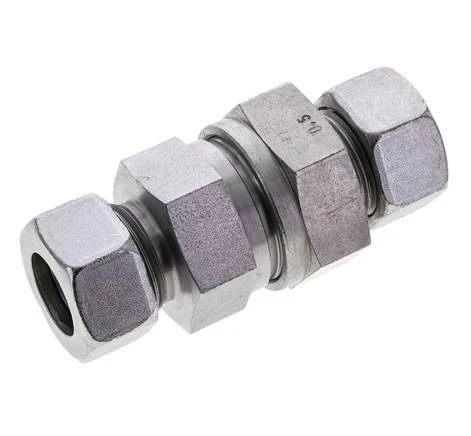

Hydraulic Check Valve Cutting Ring 22L (M30x2) Steel 0.5-160bar (7-2320)psi ISO 8434-1

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 22 mm cutting ring with a M30x2 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 0.5 to 160 bar (7 to 2320 psi). It is made in accordance with ISO 8434-1.

Pros:

• Adheres to ISO 8434-1
• Suitable for hydraulic applications

Specifications

Union nut thread : M30 x 2
Load class (DIN 2353) : L (light)
Connection type : Cutting ring
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 160
Min temperature (°C) : -20
Max temperature (°C) : 100
