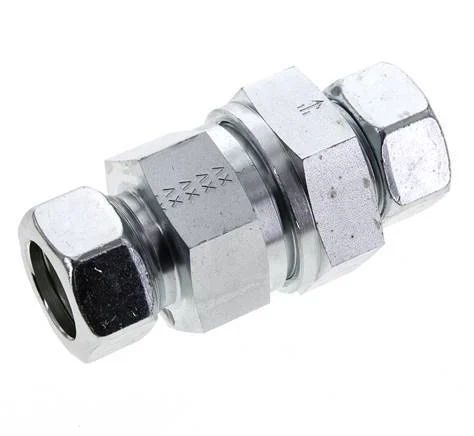

Hydraulic Check Valve Cutting Ring 28L (M36x2) Steel 1-100bar (15-1450)psi ISO 8434-1

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 28 mm cutting ring with a M36x2 union nut on both sides. Rated for L (light) load classes. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 1 to 100 bar (15 to 1450 psi). It is made in accordance with ISO 8434-1.

Pros:

• Adheres to ISO 8434-1
• Suitable for hydraulic applications

Specifications

Union nut thread : M36x2
Load class (DIN 2353) : L (light)
Connection type : Cutting ring
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 100
Min temperature (°C) : -20
Max temperature (°C) : 100
