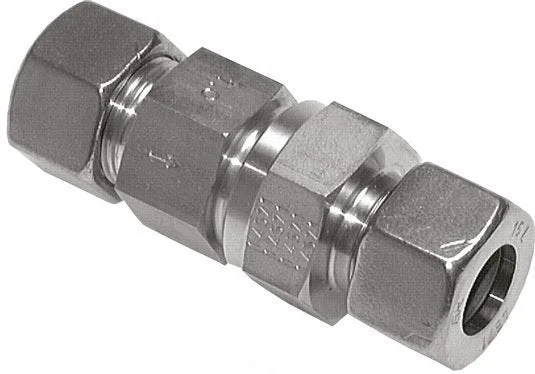

Hydraulic Check Valve Cutting Ring 38S (M52x2) Stainless Steel 1-250bar (15-3625)psi ISO 8434-1

This is a stainless steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. It has a 38 mm cutting ring with a M52x2 union nut on both sides. Rated for S (heavy) load classes. It has an FKM seal that makes it suitable for applications within a temperature range from -20 to 200 °C (-4 to 392 °F). The operating pressure range is 1 to 250 bar (15 to 3625 psi). It is made in accordance with ISO 8434-1.

Pros:

• Adheres to ISO 8434-1
• Stainless steel material has better chemical resistance than other materials
• Suitable for hydraulic applications

Specifications

Union nut thread : M52 x 2
Load class (DIN 2353) : S (heavy)
Connection type : Cutting ring
Material : Stainless steel
Seal material : FKM (FPM)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -20
Max temperature (°C) : 200
