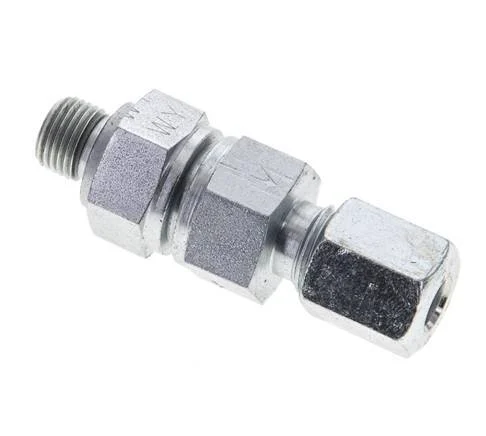

Hydraulic Check Valve Cutting Ring 6L (M12x1.5) & G1/8” Male Steel 1-250bar (15-3625)psi Thread-Tube ISO 8434-1

This is a zinc plated steel spring loaded check valve that allows free flow in one direction and prevents it from going in the opposite direction. The flow direction is from thread to tube. Connection 1 has a 6 mm cutting ring with M12x1.5 union nut, rated for L (light) load classes. Connection 2 has G 1/8 inch male threads. It has an NBR seal that makes it suitable for applications within a temperature range from -20 to 100 °C (-4 to 212 °F). The operating pressure range is 1 to 250 bar (15 to 3625 psi). It is made in accordance with ISO 8434-1.

Pros:

• Adheres to ISO 8434-1
• Suitable for hydraulic applications

Specifications

Connection size : 1/8 inch
Union nut thread : M12 x 1.5
Load class (DIN 2353) : L (light)
Connection type : Cutting ring,Outer thread cylindrical BSPP-G
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 250
Min temperature (°C) : -20
Max temperature (°C) : 100
Check valve feature : Flow from the thread
