GCA-07W-DL Includes Only:

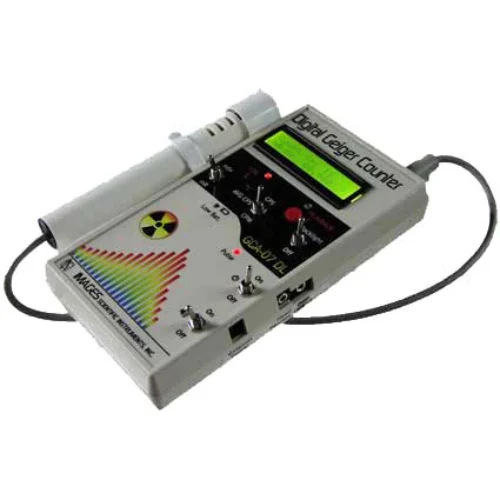

- Professional Digital Geiger Counter, 1000 mR/hr
- 110-220 VAC wall transformer power supply
Features:
- When you become client, you will receive lifetime support for your Geiger counter, plus access to US based technical support, help and customer service
- A Geiger counter must pass strict accuracy tests by an independent US Gov’t licensed Laboratory.
- Each radioactive particle detected produces a digital pulse. That pulse can be sent out as either a raw digital pulse or a serial number. User set for WIN PC or Microcontroller interfacing.
- Selectable Time Modes; Counts Per Second (CPS) or Counts Per Minutes (CPM)
- Alpha, Beta, X-rays and Gamma Radiation. Operates in Survey Meter Mode and CPM for background radiation reading modes.
- Nuclear Experiments, Radiation Calculator, Radiation Safety
- Front panel switches provide an intuitive easy-to-use interface to control all Geiger counter functions.
- Graphing and charting software features: Threshold alarms, CPS, CPM, CPH and CPD modes. Graphs in lines, bars, 3D lines and 3D bars.
The GCA-07W-DL Digital Geiger Counter is the only Geiger counter you will ever have to purchase. It has a proven track record detecting and measuring nuclear radiation in hospitals, medical research, college laboratories, industrial settings, transport containers, top soil, granite table tops, scrap metal, oil fields, objects and interior spaces.
For more information, please see Product Manual
Technical Details
| Applications And Uses |
|
| LCD Display | The 16 x 2 character LCD displays radioactive count and radiation level in mR/hr or mSv/hr. Time selection switch allows Counts Per Second (CPS) or Counts Per Minute (CPM) mode. |
| Case Size | The GCA-07W-DL measures 7-1/2″ (length) x 4.1″ (width) x 1-1/4″ (height). |
| External Probe | The external wand makes it easier to search materials and to detect surface contamination |
| Counting Range | 1 Count Per Minute (CPM) To 10, 000 Counts Per Second (CPS). |
| Radiation Range |
|
| Nist Traceable Calibration | Factory calibration using an NIST traceable radiation source to insure accurate radiation measurements. |
| Power | For mobile operation a 9V battery (not included) may be used. A 110-220 VAC wall transformer power supply is included. |
| Detects Ionizing Radiation | Alpha particles above 3 MeV in energy. GM tube has a thin mica window that allows alpha radiation to be detected. Beta radiation above 50 KeV; X-Ray and Gamma radiation above 7 KeV. |
| Sensor | Constructed using an American made LND 712 Geiger Mueller (GM) Tube. The GM tube has a .38 effective diameter. Alpha radiation end window comprised of 1.5-2.0 mg/cm2 mica. |
| LCD Display | Is a 16 character by 2 lines display. Displays count and equivalent radiation level. |
| CPS Mode | LCD displays second by second count and current radiation level in millirads (mR) per hour (mR/hr) Imperial or in millisivets (mS) per hour (mS/hr) Metric. Switch selectable. |
| CPM Mode | LCD display minute by minute count and background radiation level in microrads (uR) to millirads per hour (mR/hr) Imperial. Or in microsivets (uS) to millisivets per hour (mS/hr) Metric. |
| I/O Options | Headphones. External Speaker. External Power. 3.5mm Data Port for WIN PC and microcontroller interface. WIN PC requires optional 3.5mm to USB data cable. |
| Data Output Port | The 3.5MM stereo socket outputs either Serial Data (default) or a TTL logic pulse for each radioactive particle detected. Jumper switch selection. The serial output is the counts per second sent via USB cable to Windows PC Geiger Counter Graphing program for charting and recording the measured radiation over time. |
| Secondary Indicators | Audio (clicks) and visual (LED) included. Also includes a headphone jack and a power jack for external power. A 110 VAC to 9V wall transformer power supply is included. 9V battery (mobile operation) not included. |
