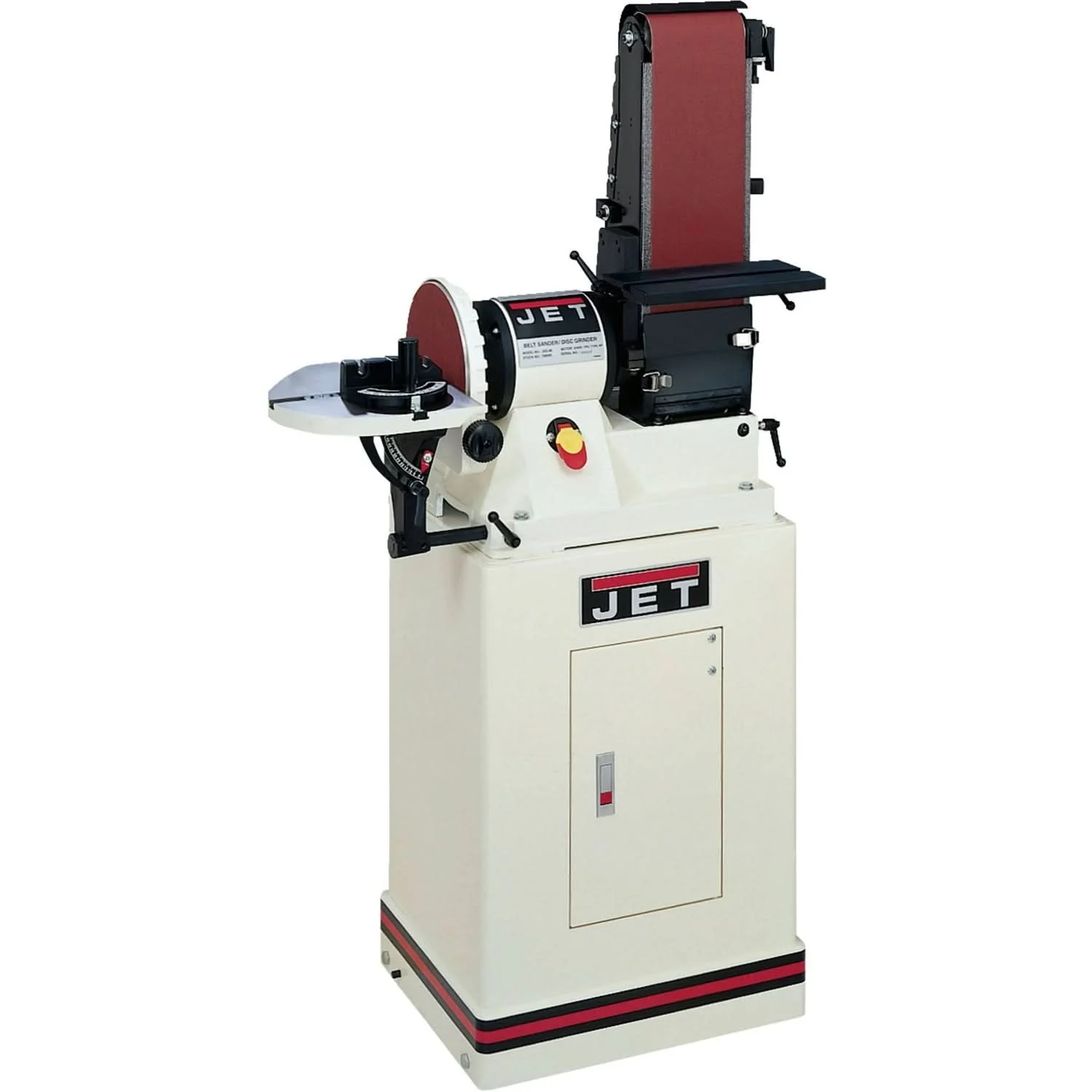

Jet 708597K JSG-96CS, 6″ x 48″ Belt / 9″ Disc Sander with Closed Stand, 3/4HP 1Ph, 115V

Key Features

Two Sanding ModesThe JET JSG-96CS belt and disc sander gives you a 6 inch x 48 inch belt for long edges and flat work, plus a 9 inch disc for curves, end grain, and detail cleanup. That means one machine can handle most bench sanding jobs without bouncing between tools. Faster Abrasive ChangesA quick-release belt tension lever speeds up belt swaps, and the quick-lock dust cover makes disc changes easier. Less messing around means more time actually sanding parts. Shop-Friendly StandThe heavy-duty closed stand adds support, built-in storage for abrasives, built-in handles, and integrated locking wheels. You get a stationary sander that is easier to move and easier to live with in a real shop.

Overview

Jet 708597K JSG-96CS, 6″ x 48″ Belt / 9″ Disc Sander with Closed Stand, 3/4HP 1Ph, 115V is a stationary combination sander built for shaping, smoothing, beveling, and edge work in woodshops and fabrication spaces. This is a belt and disc sander designed for general sanding, edge cleanup, and angled surface work. Model Number: 708597K. If you need one machine that can handle straight runs on the belt and curved or end-grain work on the disc, this setup covers a lot of ground without eating up a huge footprint.

The big draw here is versatility. The 6 inch x 48 inch belt gives you a long sanding surface for flattening edges, fitting parts, easing corners, and cleaning up stock after cutting. The 9 inch sanding disc takes over when you need controlled work on shorter pieces, rounded profiles, or precise edge sanding with the miter gauge. For a lot of cabinet, furniture, trim, and small fabrication work, that combination makes more sense than dedicating space to separate machines.

JET backs that layout with a 3/4 horsepower motor running on 115 volts, so this machine fits shops that need solid stationary performance on standard single-phase power. Supplementary specification data lists the disc speed at 1,725 RPM and the belt speed at 2,258 RPM, which is the kind of range that works well for steady material removal without turning the machine into a specialty-only tool. The 11 amp motor draw also tells you this is built as a serious shop sander, not a light benchtop unit pretending to be one.

On the belt side, the large cast iron table has preset stops at 90 degrees and 45 degrees and can be used with the belt vertical, horizontal, or anywhere in between. That matters because sanding jobs are rarely all the same. Sometimes you want a vertical belt for edge shaping, sometimes a horizontal position for supporting larger workpieces, and sometimes an in-between angle to hit a bevel cleanly. The tilting belt table range is listed at 10 degrees up and 45 degrees down, which adds more flexibility for fitting and finish prep work.

JET also paid attention to the little things that keep a machine productive over time. The graphite-covered steel platen runs cooler, which helps increase machine and belt life. The rubber-coated drive drum improves grip on the sanding belt, reducing slippage under load. There is also an exclusive dual thumbscrew belt tracking adjustment with a quick-lock handle to keep the belt running where it should. Those are the details that matter when you use a sander regularly and do not want to fight wandering belts or premature abrasive wear.

Disc and belt changes are handled with jobsite-friendly hardware instead of making you treat routine maintenance like a project. The quick-release belt tension lever makes belt swaps faster, and the quick-lock dust cover allows quicker disc changes. In plain terms, when you burn through abrasives or need to switch grits for a different stage of work, you are not wasting time digging into the machine longer than necessary.

Dust handling is built around a single 4 inch port at the back of the base that collects from both the belt and disc. That is a practical setup for a stationary sander because you can connect one dust collection line instead of trying to manage separate pickups. In a woodshop, that helps keep abrasive dust under control, keeps the work area cleaner, and makes the machine more practical for day-to-day use. Sealed ball bearings are another shop-friendly detail because they never require additional lubrication.

The closed stand is more than a pedestal. It is a one-piece formed steel heavy-duty stand that adds support and gives you additional storage for abrasives inside the base. Built-in handles and integrated locking wheels make the machine easier to reposition when shop space is tight or when you need to move it for cleaning and layout changes. At about 196 pounds gross and 160 pounds net tool weight from supplementary data, it is substantial enough to stay planted while still being designed with mobility in mind.

This machine makes the most sense for woodworkers, cabinet shops, furniture builders, school shops, and serious DIY users who want a true stationary sanding solution instead of a lighter benchtop compromise. If your work includes fitting miters, smoothing edges, refining curves, beveling parts, or general finish sanding prep, the JET JSG-96CS hits a useful middle ground: enough capacity and durability for real shop use, but still compact enough to fit where floor space matters.

One Machine for Flat Edges and Curves

The biggest reason to buy a combination sander is simple: you get the right sanding surface for the job without giving up more shop space than you need to. The long belt handles straight edges and larger contact areas, while the disc is the better choice for curved work and shorter parts.

• 6 inch x 48 inch belt for edge sanding, fitting, and longer workpieces
• 9 inch disc for curved profiles, end grain, and detail cleanup

Adjust for the Work Instead of Fighting It

Good sanding is mostly about control. The adjustable tables and preset stops help you hold parts consistently, which matters when you are dialing in a fit instead of just removing material fast.

• Large cast iron table has preset stops at 90 degrees and 45 degrees
• Belt can be used vertically, horizontally, or between those positions

Built to Stay Productive in a Real Shop

This machine is set up for repeat use, not occasional hobby duty. Faster abrasive changes, dust collection, stable support, and easier mobility all make a difference once the sander becomes part of your normal workflow.

• Quick-release belt tension lever and quick-lock dust cover reduce downtime during abrasive changes
• Closed stand includes storage, built-in handles, and integrated locking wheels

What’s in the Box

• Sander machine
• Sanding disc
• Tables
• Center point
• Handles
• Washers
• Miter gauge
• Manual
• Warranty card

Key Specifications

Motor Power	3/4 HP
Voltage	115V
Amperage	11 A
Belt Size	6 in x 48 in
Disc Diameter	9 in
Dust Port Diameter	4 in
Disc Speed	1,725 RPM
Belt Speed	2,258 RPM

Built For

WoodworkingCabinetryFurniture BuildingTrim FittingEdge SandingBevel SandingCurve ShapingSerious DIY / Hobbyist

Tool Nut’s Take

Tool Nut’s Take

JET 708597K JSG-96CS Belt and Disc Sander That Earns Its Floor Space

This is the kind of stationary sander that makes sense for shops that need real capacity, cleaner setup, and easy adjustability without jumping to a much larger industrial machine.

• Who it’s for: Woodworkers, cabinet guys, school shops, and serious home shops doing regular edge sanding, fitting, bevel work, and curve cleanup.
• Why it stands out: You get a useful 6 x 48 belt and 9 inch disc combo, a solid cast iron work surface, quick abrasive changes, and a closed stand with mobility and storage built in.
• Worth knowing: At this weight, it is not a casual benchtop machine. That is a good thing if you want stability, but plan on giving it a real spot in the shop.

Common Questions

• What type of sander is this? It is a stationary combination belt and disc sander with a 6 inch x 48 inch sanding belt and a 9 inch sanding disc.
• What power does it require? This machine runs on 115V single-phase power and uses an 11 amp, 3/4 horsepower motor.
• Does it support dust collection? Yes. It has a single 4 inch dust port on the back of the base that collects from both the belt and the disc.
• Can the sanding position be changed? Yes. The belt can be used vertically, horizontally, or in between, and the cast iron table has preset stops at 90 degrees and 45 degrees.
