Key Features
1200 CFM AirflowThe 2 HP motor and high-air-velocity design move up to 1200 CFM through 4 inch inlets, which matters when you need one dust collector to keep saws and sanders from burying the shop in fine dust. Vortex Cone SeparationJET’s Vortex Cone keeps larger chips out of the filter area, which helps reduce premature clogging and keeps suction from falling off as the bag fills. Portable Shop SetupAn all-steel housing on a four-caster base makes this dust collector easier to move where the work is, instead of rearranging your whole shop around a fixed unit.
Overview

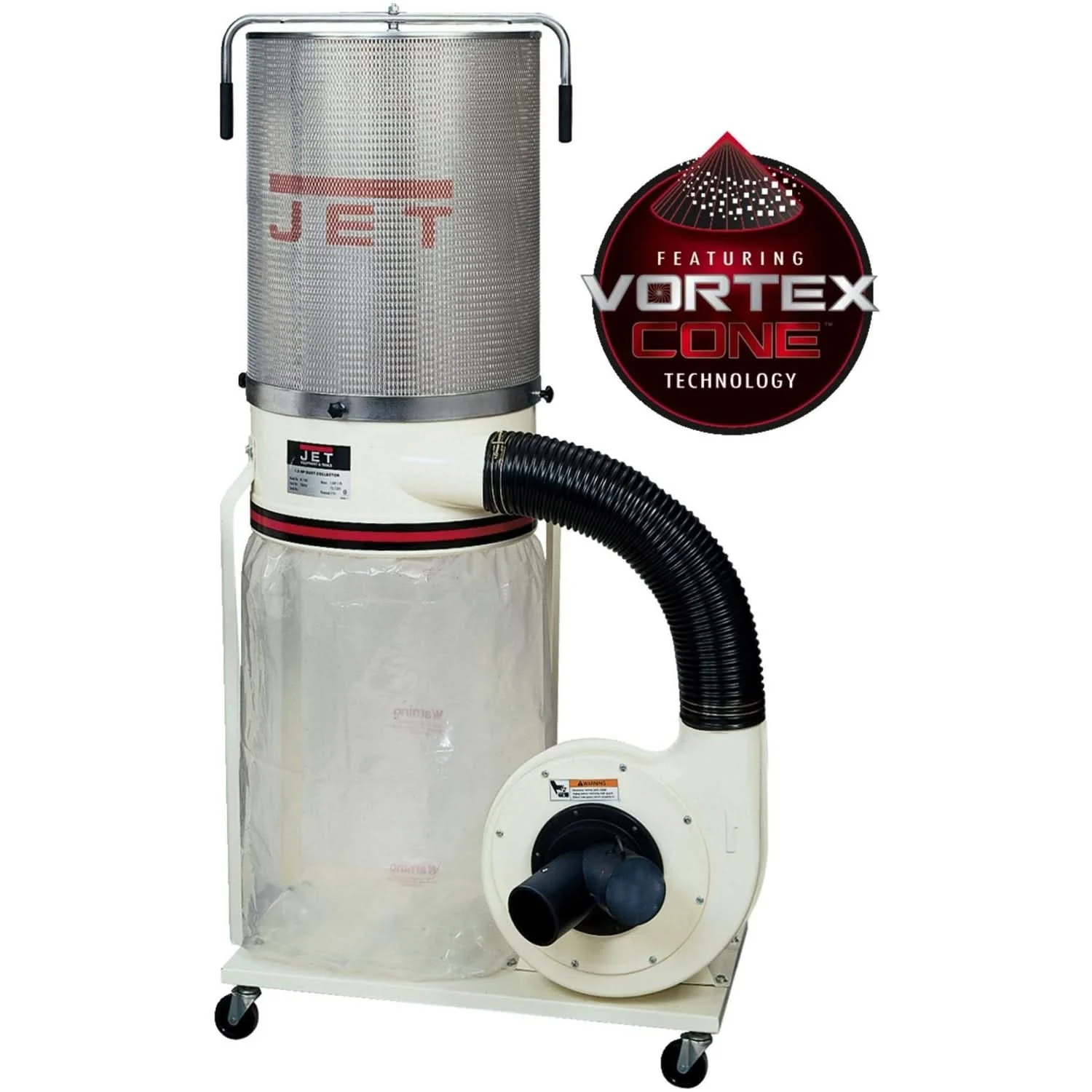

The DC-1200VX-CK1 Dust Collector, 2HP 1PH 230V, 2-Micron Canister Kit is a shop dust collector built for woodworkers and serious shop users who need stronger chip separation and more consistent suction than a basic bag-style unit. This is a dust collector designed for collecting sawdust, chips, and fine airborne dust from stationary woodworking machines. Model Number: DC-1200VX-CK1. If you run table saws, planers, jointers, sanders, or similar machines and want cleaner air with less filter maintenance, this is the kind of collector that makes day-to-day shop work a lot easier.
The big selling point here is the Vortex Cone system paired with a 2 HP motor and up to 1200 CFM airflow at 4 inches. On paper, that means strong suction. In the shop, it means better pickup at the machine and fewer performance drops as chips and shavings build up. Instead of sending everything straight at the filter, the cone improves separation so larger debris drops lower while finer particles move upward to the canister filter. That matters because a clogged filter is what turns a dust collector into a loud fan with a bag attached.
The filtration side is also a real step up from entry-level collectors. The canister is rated to 2 microns, with published performance noting 98 percent capture at 2 microns and 86 percent at 1 micron. For anyone doing sanding, sheet goods, or repetitive machine work, that fine dust is the stuff you actually care about controlling. Bigger chips are easy to see and sweep. Fine dust is what hangs in the air, settles on everything, and ends up in your lungs and your bearings.
JET built this unit with an all-steel housing, steel impeller, industrial controls, and a permanently lubricated, totally enclosed, fan-cooled motor rated for continuous duty. That tells you this machine is meant to live in a working shop, not just come out once in a while for weekend cleanup. The 12 inch steel impeller helps it move a serious volume of air, and the single-stage design keeps the setup straightforward without driving cost and complexity into full cyclone territory.
For real-world use, the quick-connect lower collection bag and cleaning system on the upper filter are worth mentioning. Bag changes are faster, and the collector is designed to make handling dust less of a fight. JET also calls out reduced premature filter clogging, which is one of the main reasons buyers step up to this style of collector in the first place. Noise is listed at 80 to 85 dB, so it is not silent, but it stays in the range most buyers expect from a 2 HP dust collection system.
From a shop-layout standpoint, the mobile base with four casters makes this easier to use in smaller or shared workspaces. Not everybody has room for fixed ducting and a permanently parked collector. If your machines move, or your workflow changes depending on the job, portability matters. The 6 inch single hose connection and dual 4 inch hose option also give you flexibility when setting up around individual machines or branching to multiple smaller ports.
This JET dust collector is best suited for woodworking shops, cabinet work, furniture building, trim production, and general machine cleanup where 230V power is available. It makes the most sense for buyers who want more separation efficiency and less filter hassle than a basic single-stage bag collector, but who do not need to jump all the way to a large fixed cyclone system. If your shop runs several stationary tools and fine dust control is becoming a problem, this is a practical upgrade that solves a real issue.
Keep Suction From Falling Off
This JET dust collector is built around better chip separation, which is what helps it hold performance longer instead of loading the filter early and choking airflow.
- Vortex Cone design improves chip separation and collector bag packing efficiency
- 2 HP motor delivers up to 1200 CFM airflow for stationary woodworking tools
- 2-micron canister filtration helps capture the fine dust that hangs in the air
At a Glance
2 HPMotor Output1200 CFMAirflow @ 4 in.2 MicronCanister Efficiency230VPower Requirement
Key Specifications
| Motor Power | 2 HP |
|---|---|
| Voltage | 230 V |
| Motor Amps | 8 A |
| Air Flow @ 4 in. | 1200 CFM |
| Single Hose Connection Diameter | 6 in. |
| Dual Hose Connection Diameter | 4 in. |
| Collection Bag Capacity | 5.3 cu. ft. |
| Filter Efficiency | 2 micron |
| Impeller Diameter | 12 in. |
| Housing Material | Steel |
| Noise Level | 80 – 85 dB |
| Weight | 170 lbs |
Built For
WoodworkingCabinet ShopsFurniture MakingTable Saw Dust CollectionPlaner and Jointer CleanupSanding Dust ControlSmall to Mid-Size ShopsSerious DIY / Hobbyist
Pro Tip
If you are setting this collector up for one machine at a time, use the 6 inch connection whenever your machine supports it. You will usually get better airflow than choking the system down right away, and that lets the Vortex Cone do its job with less filter loading.
Warranty & Support
JET lists this dust collector with a 5 Year warranty.
Tool Nut’s Take
Tool Nut’s Take
DC-1200VX-CK1 Dust Collector, 2HP 1PH 230V, 2-Micron Canister Kit is the smart step up from a basic bag collector
If you want better fine-dust control without jumping into a bigger fixed cyclone setup, this one hits a sweet spot.
- Who it’s for: Woodworkers, cabinet guys, furniture builders, and serious home shop users running stationary machines on 230V power.
- Why it stands out: The Vortex Cone is the reason to buy it. Better chip separation means the filter stays cleaner longer and airflow stays more consistent.
- Worth knowing: This is still a sizable 170 lb machine and it needs 230V, so make sure your shop is wired for it before you roll it in.
Common Questions
- What kind of tool is this? This is a single-stage canister dust collector for collecting sawdust, chips, and fine dust from woodworking machines.
- What power does it require? It runs on 230V single-phase power and uses an 8 amp, 2 HP motor.
- How much air does it move? JET lists airflow at 1200 CFM through a 4 inch connection.
- What size hose connections does it support? It supports one 6 inch hose connection or two 4 inch hose connections.
- How fine is the filtration? The canister filter is rated at 2 microns.
