Key Features
Smart Feed ControlSandsmart control monitors drum load and adjusts conveyor speed automatically. That helps the JET JWDS-2550 Drum Sander keep material moving without overloading the motor or burning the workpiece. Easy Parallel SetupThe tool-free parallelism system lets you fine-tune the conveyor bed with a simple outside dial. Less setup time means faster corrections and more consistent sanding across wide panels. Cleaner Finish PathA mirrored dust hood channels chips and dust toward the 4 inch port so debris stays out from under the stock. That matters when you are chasing a smooth, even finish instead of sanding scratches and snipe.
Overview

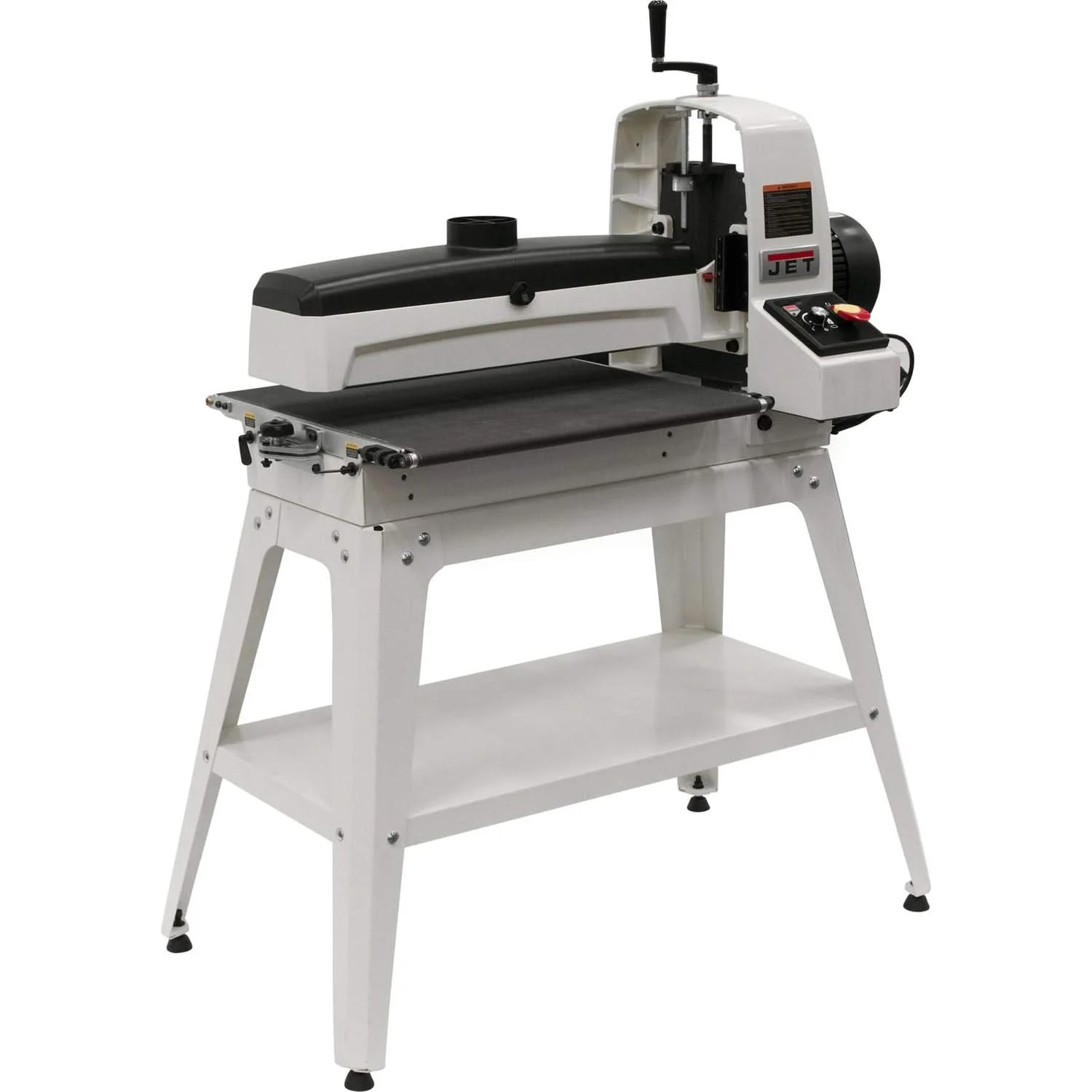

The JET 723550OSK JWDS-2550 Drum Sander With Open Stand is a floor-standing drum sander built for flattening, thickness sanding, and finish prep on woodworking stock. This is a drum sander designed for sanding wood panels, boards, and workpieces to a consistent thickness and surface finish. Model Number: 723550OSK. If you need a stationary woodworking sander that can handle regular shop use with better control over feed rate and bed alignment, this is the kind of machine that earns its floor space.
The big selling point here is control under load. JET’s Sandsmart system continuously monitors drum motor load and automatically regulates conveyor speed so you can keep the highest practical feed rate without bogging the machine down. In real shop use, that means less guesswork when sanding wider boards, figured stock, or material that changes density across the grain. The infinitely variable feed speed, up to 10 feet per minute, gives you room to slow down for finish passes or keep things moving on heavier stock removal.
Adjustment is another place where this machine makes sense for serious woodworkers. The tool-free parallelism system lets you adjust the conveyor bed from the outside with a dial instead of fighting with a wrench and a long setup routine. JET also added a stop on the parallelism adjust dial so you can quickly return the bed to a flat position. That matters if you switch between setup corrections and repeat work, because it cuts down on wasted time and helps keep your sanding passes consistent from one project to the next.
The sanding assembly is built around a precision-machined, dynamically balanced extruded aluminum drum. That drum is designed to dissipate heat, which helps protect the work surface from heat damage during longer sanding sessions. JET also uses sealed, permanently lubricated ball bearings for longer life, and the drum is removable for service or abrasive changes. On a drum sander, heat and vibration are what show up in the final surface, so those design choices are not throwaway specs. They directly affect finish quality.
The conveyor side of the machine is just as important. The reinforced steel conveyor bed is precision flattened, and the redesigned conveyor system pulls the workpiece through the sander instead of pushing it. Adjustable tension rollers help apply downward pressure to reduce snipe, while conveyor belt trackers reduce the need for constant manual adjustment. In plain terms, the machine is set up to feed stock more predictably and leave fewer surprises at the leading and trailing edges.
Dust collection and everyday usability are clearly part of the design. The dust hood includes an integrated channel that mirrors the shape of the drum and directs dust and chips toward the 4 inch collection port. That helps keep debris from getting trapped between the workpiece and conveyor, which is one of the easiest ways to mark up a panel during finish sanding. The on and off switch and variable speed control are mounted where you can reach them quickly, and the open stand uses a 24 inch by 50 inch footprint for stability, with a storage shelf and pre-drilled holes for casters.
Capacity is solid for a shop machine in this class. You get a 25 inch drum length, a 5 inch drum diameter, and support for stock from 1/32 inch up to 4 inches thick. The 1.75 horsepower motor draws 15 amps on 115 volts, which gives you a serious stationary sander without stepping up to a higher-voltage shop circuit. One full rotation of the top handwheel changes drum height by 1/16 inch, and the relative depth scale lets you reset and measure depth from project to project with better repeatability.
Who is this for? Woodworkers, cabinet shops, furniture builders, trim shops, and serious DIY users who need better finish prep than a planer or handheld sander can deliver. If your work includes face frames, glued-up panels, drawer parts, tabletops, cutting boards, or fine finish sanding before stain and topcoat, the JET JWDS-2550 Drum Sander With Open Stand is built for that job. If you only sand a couple of small hobby pieces a year, it is more machine than you need. If you regularly process stock and care about consistency, this one makes a lot of sense.
Dial In Thickness Without Fighting Setup
The height adjustment system is built for repeatable work, not trial and error. When you are sneaking up on final thickness, small predictable moves matter more than flashy specs.
- One full handwheel rotation changes drum height by 1/16 inch
- Relative depth scale helps reset and measure depth for repeat projects
- Handles stock from 1/32 inch up to 4 inches thick
Make Parallel Adjustments Fast
Parallelism adjustments are easier here than on a lot of older drum sanders. That means less time tweaking the machine and more time running stock that comes out even from side to side.
- Outside-mounted dial adjusts conveyor bed parallelism with no tools
- Parallelism stop lets you return the bed to a flat position quickly
- Useful when fine-tuning sanding results on wide panels and glued-up stock
Feed Stock More Smoothly Through the Machine
A drum sander is only as good as the way it supports and moves the workpiece. JET put real attention into the conveyor system so you get steadier tracking and fewer edge issues.
- Precision-flattened reinforced steel conveyor bed supports consistent sanding
- Redesigned conveyor pulls the workpiece through instead of pushing
- Adjustable tension rollers help reduce snipe at the ends of the board
Keep Controls Close and Dust Moving Out
Good shop machines are easier to trust when the controls are simple and the dust path is thought through. This one gives you both, which matters on long sanding sessions.
- Integrated on and off switch and variable speed control knob are easy to reach
- Mirrored dust hood directs debris toward the 4 inch collection port
- Separate feed and drum motors optimize sanding performance
Key Specifications
| Tool Style | Floor-standing drum sander |
|---|---|
| Motor Power | 1.75 HP |
| Amperage | 15 A |
| Voltage | 115 V |
| Drum Diameter | 5 in. |
| Drum Length | 25 in. |
| Material Thickness Capacity | 1/32 in. to 4 in. |
| Dust Port Diameter | 4 in. |
| Feed Speed | Up to 10 ft./min. |
| Net Weight | 234 lbs |
Built For
Woodworking Cabinet Shops Furniture Building Panel Sanding Thickness Sanding Finish Prep General Contracting Serious DIY / Hobbyist
Pro Tip
When you fine-tune bed parallelism for a specific board, use the stop on the adjust dial to get back to flat fast before the next setup. It is a simple feature, but it saves a lot of back-and-forth when you run mixed panel sizes.
Warranty & Support
5 Year warranty.
Tool Nut’s Take
Tool Nut’s Take
JET 723550OSK JWDS-2550 Drum Sander With Open Stand Is the Right Kind of Shop Upgrade
This is the kind of stationary sander that makes sense when you are tired of inconsistent finish prep and want a machine that gives you better control instead of more hassle.
- Who it’s for: Woodworkers, cabinet builders, furniture makers, and serious DIY users who regularly sand panels, glued-up stock, and parts to a repeatable finish.
- Why it stands out: Sandsmart load control, easy tool-free parallelism adjustment, a well-thought-out conveyor system, and solid dust collection features all work together to make the machine easier to use well.
- Worth knowing: At 234 pounds, this is a true floor machine, not something you tuck on a bench. If you have the space and the workload, that weight and footprint are part of why it stays stable.
Common Questions
- What type of sander is this? It is a floor-standing drum sander designed for woodworking thickness sanding and finish sanding.
- What is the maximum material thickness it can handle? The machine supports material up to 4 inches thick, with a minimum thickness of 1/32 inch.
- Does it have variable feed speed? Yes. It has infinitely variable speed control with feed rates up to 10 feet per minute.
- What size dust collection port does it use? It uses a 4 inch dust port.
- What power does it require? It runs on 115 volts and uses a 15 amp, 1.75 horsepower motor.
