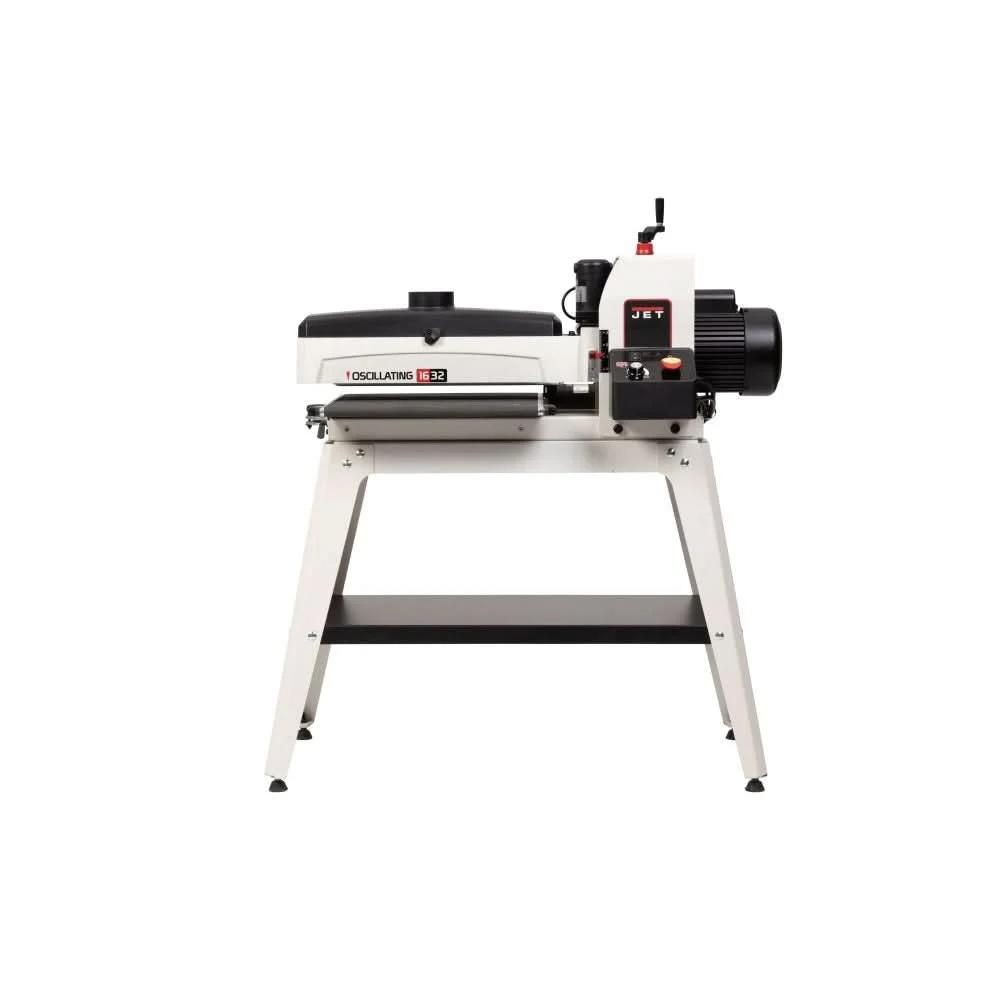

JET JWDS-1632OSC Drum Sander with Stand (723525)

Key Features

Oscillating Drum FinishThe oscillating drum moves side to side while sanding, which helps cut down visible scratch patterns and reduces heat buildup. That means a cleaner surface and longer abrasive life when you’re running panels, face frames, or solid stock.Smart Feed ControlSandsmart control monitors drum load and adjusts conveyor speed automatically to keep material moving without overloading the motor. It helps you avoid stalls and saves time dialing in feed rate by trial and error.Cleaner Shop, Better SandingThe hood design follows the drum shape and routes dust to a 4 inch port for stronger collection where it matters most. Less dust around the abrasive means more consistent sanding and less cleanup at the end of the job.

Overview

The JET JWDS-1632OSC Drum Sander with Stand is a stationary woodworking sander built for flattening, thickness-sanding, and finish sanding boards and panels. This is a drum sander designed for smoothing stock with better surface consistency than a planer can deliver on the final pass. Model Number: JWDS-1632OSC. If you build cabinets, tabletops, cutting boards, doors, or glued-up panels, this machine gives you controlled stock removal and a more refined finish with less risk of chatter or uneven results.

What separates this unit from a basic drum sander is the oscillating drum action. Instead of sanding in one fixed path, the drum moves left to right with a 3/4 inch oscillating stroke while it spins. In real use, that matters because it helps spread wear across the abrasive, reduces loading, and minimizes heat buildup that can burn wood or shorten paper life. Pair that with the self-cooling, precision-machined extruded aluminum drum, and you get a setup made to stay more stable during longer sanding sessions.

Feed control is another strong point here. JET’s Sandsmart system continuously monitors the drum motor load and automatically regulates conveyor speed so you can keep the highest practical feed rate without bogging the machine down. That is a big help when you’re running mixed hardwoods, glue-ups with varying density, or wide panels that would normally force you to baby the pass. The infinitely variable conveyor speed from 0 to 10 feet per minute gives you the ability to slow down for final finish sanding or speed up when you’re removing more material.

From a setup and adjustment standpoint, this machine is built to save aggravation. Conveyor bed parallelism can be adjusted from a dial on the outside of the bed with no tools required, which makes fine-tuning faster and a lot less frustrating than older designs that require digging into the machine. The toolless abrasive take-up clips also make paper changes quicker, which matters when you switch grits often or run enough stock that paper changes are part of the workday instead of an occasional task.

Dust collection and overall shop practicality are well thought out. The hood includes an integrated channel shaped to follow the drum and direct chips and dust toward the 4 inch collection port. That helps keep the abrasive cutting cleaner and the work area more manageable. The machine also uses separate feed and drum motors for more controlled performance, rides on a heavy-duty steel stand, and weighs 227 pounds, which is what you want in a stationary sander meant to stay planted while feeding long stock.

The capacity fits a lot of real shop work. You get a 16 inch maximum board width, up to 3 inch maximum board thickness, and a minimum board thickness of 1/32 inch. For woodworkers, furniture builders, and serious DIY users who need cleaner finish sanding on panels, strips, and glued assemblies, this is the kind of drum sander that earns its floor space. It is especially useful when you need repeatable sanding results without the swirl marks, uneven hand pressure, or time drain that comes with trying to do the same work on a handheld sander.

JET JWDS-1632OSC Drum Sander with Stand Helps You Dial In Finish Quality

This drum sander is set up for controlled, repeatable sanding instead of guesswork. The combination of oscillation, variable conveyor speed, and quick parallelism adjustment makes it easier to tune the machine for the material in front of you.

• Infinitely variable conveyor speed from 0 to 10 feet per minute for rougher passes or slower finish sanding
• Outside-bed parallelism adjustment means you can fine-tune tracking and sanding accuracy without tools

Key Specifications

Tool Type	Oscillating Drum Sander
Motor Power	1-1/2 HP
Motor Amps	14 A
Voltage	115 V
Drum Speed	1,725 RPM
Conveyor Speed	0 to 10 FPM
Drum Size	5 in diameter x 16 in length
Oscillating Stroke	3/4 in
Maximum Board Width	16 in
Maximum Board Thickness	3 in
Minimum Board Thickness	1/32 in
Dust Port Diameter	4 in
Recommended Circuit Size	20 A
Weight	227 lbs

Built For

WoodworkingCabinetryFurniture MakingPanel SandingGlue-Up CleanupFinish PrepSmall Professional ShopsSerious DIY / Hobbyist

Pro Tip

Use the faster conveyor setting for light cleanup passes and slow it down for your last finish pass. On wide glue-ups, that slower final pass lets the oscillating drum do its job and usually leaves a more uniform scratch pattern with less paper loading.

Warranty & Support

JET lists this machine with a 5 Year warranty.

Tool Nut’s Take

Tool Nut’s Take

A real step up from basic finish sanding

The JET JWDS-1632OSC Drum Sander with Stand makes sense for woodworkers who are tired of fighting inconsistent finish quality on panels and glued-up stock.

• Who it’s for: Cabinet shops, furniture builders, and serious home shops that need cleaner, more repeatable sanding on boards and panels.
• Why it stands out: The oscillating drum, Sandsmart feed control, and no-tool parallelism adjustment solve the stuff that usually slows drum sanders down.
• Worth knowing: At 227 pounds, this is a true stationary shop machine, not something you move around casually. Give it a good dust collector and the floor space it deserves.

Common Questions

• What is the maximum sanding width? This machine is rated for a maximum board width of 16 inches.
• Does it have variable feed speed? Yes. The conveyor speed is infinitely variable from 0 to 10 feet per minute.
• What size dust collection port does it use? It uses a 4 inch dust port for connection to dust collection.
• Is this a benchtop sander? No. It is a stationary drum sander supplied with a stand and weighs 227 pounds.
