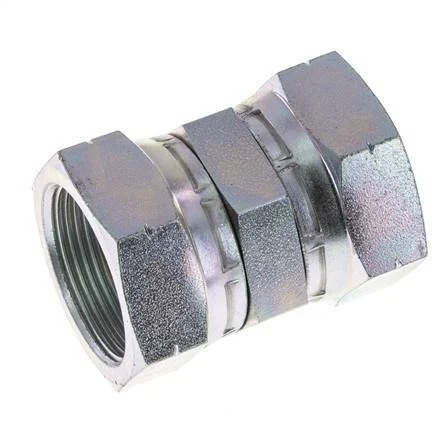

JIC Connector UN 1-5/8”-12 (Dash Size 20) Steel 140bar (1967.0psi)

Original price was: $81.91.Current price is: $24.57.

SKU: F2FR5 Category: Fittings Tag: Tameson

Description
Reviews (0)

This is a JIC connector with UNF threads. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The maximum operating pressure is 140 bar (1967.0 psi).

Specifications

Thread : UN 1-5/8-12
Dash Size : 20
Connection type : Inner thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 140
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
