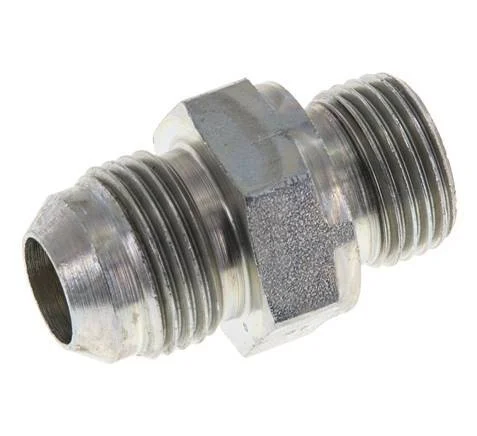

JIC Double Nipple G1/2” x UNF 7/8”-14 (Dash Size 10) Steel NBR 210bar (2950.5psi) [2 Pieces]

This is a JIC double nipple with G and UNF threads. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The seal material is NBR. The maximum operating pressure is 210 bar (2950.5 psi).

Specifications

Thread : UNF 7/8-14
Thread (smaller) : 1/2 inch
Dash Size : 10
Connection type : Outer thread cylindrical BSPP-G,Outer thread flare (UNF)
Material : Steel
Seal material : NBR (nitrile rubber)
Max pressure at 20 °C (bar) : 210
Min temperature (°C) : -30
Max temperature (°C) : 100
Fitting features : Reducing
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
