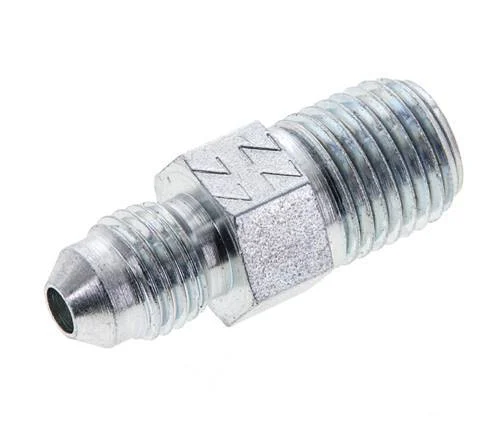

JIC Double Nipple UNF 7/16”-20 (Dash Size 4) x 1/4” NPT Steel 275bar (3863.75psi) [2 Pieces]

This is a JIC double nipple with NPT and UNF threads. Zinc-coated steel fittings provide some corrosion resistance, but are not meant for corrosive environments. The maximum operating pressure is 275 bar (3863.75 psi).

Specifications

Thread : UNF 7/16-20
Thread (smaller) : 1/4 inch
Dash Size : 4
Connection type : Inner thread conical (NPT),Outer thread flare (UNF)
Material : Steel
Max pressure at 20 °C (bar) : 275
Fitting features : Reducing
Material connection 1 : Steel
Material connection 2 : Steel
Shape : Straight
Surface protection connection 1 : Galvanic zink plated
Surface protection connection 2 : Galvanic zink plated
