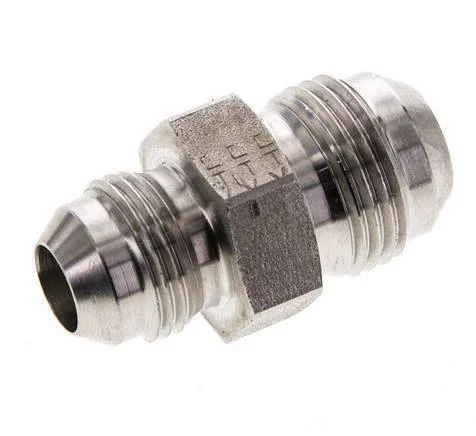

JIC Reducing Double Nipple UNF 3/4”-16 (Dash Size 8) x UNF 7/8”-14 (Dash Size 10) Stainless Steel 210bar (2950.5psi)

This is a JIC double nipple with UNF threads. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 210 bar (2950.5 psi).

Specifications

Thread : UNF 7/8-14
Thread (smaller) : UNF 3/4-16
Dash Size : 10
Dash Size (smaller) : 8
Connection type : Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 210
Fitting features : Reducing
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
