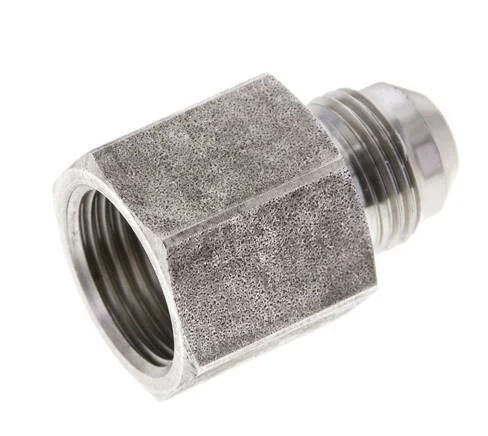

JIC Reducing Nipple UNF 3/4”-16 (Dash Size 8) Male x UNF 7/8”-14 (Dash Size 10) Female Stainless Steel 210bar (2950.5psi)

This is a JIC reducing nipple with UNF threads. Stainless steel 316 (1.4571) fittings have excellent corrosion resistance (better than stainless steel 304). The maximum operating pressure is 210 bar (2950.5 psi).

Specifications

Thread : UNF 7/8-14
Thread (smaller) : UNF 3/4-16
Dash Size : 10
Dash Size (smaller) : 8
Connection type : Inner thread flare (UNF),Outer thread flare (UNF)
Material : Stainless steel
Max pressure at 20 °C (bar) : 210
Fitting features : Reducing
Quality of material : Stainless steel (1.4571)
Material connection 1 : Stainless steel
Material connection 2 : Stainless steel
Material quality connection 1 : Stainless steel (1.4571)
Material quality connection 2 : Stainless steel (1.4571)
Shape : Straight
